LITE-ON

RB520S-30 Datasheet Preview

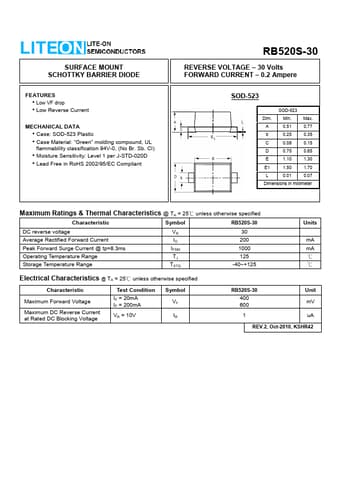

RB520S-30 Datasheet

SURFACE MOUNT SCHOTTKY BARRIER DIODE

No Preview Available !

SURFACE MOUNT
SCHOTTKY BARRIER DIODE
FEATURES
Low VF drop
Low Reverse Current
MECHANICAL DATA
Case: SOD-523 Plastic
Case Material: “Green” molding compound, UL
flammability classification 94V-0, (No Br. Sb. CI)
Moisture Sensitivity: Level 1 per J-STD-020D
Lead Free in RoHS 2002/95/EC Compliant
RB520S-30
REVERSE VOLTAGE – 30 Volts
FORWARD CURRENT – 0.2 Ampere
SOD-523
SOD-523
Dim. Min. Max.
A 0.51 0.77
b 0.25 0.35
C 0.08 0.15
D 0.75 0.85
E 1.10 1.30
E1 1.50 1.70
L 0.01 0.07
Dimensions in millimeter
Maximum Ratings & Thermal Characteristics @ TA = 25unless otherwise specified
Characteristic
Symbol
RB520S-30
DC reverse voltage
Average Rectified Forward Current
Peak Forward Surge Current @ tp=8.3ms
Operating Temperature Range
Storage Temperature Range
VR
IO
IFSM
TJ
TSTG
30
200
1000
125
-40~+125
Units
mA
mA
Electrical Characteristics @ TA = 25unless otherwise specified
Characteristic
Maximum Forward Voltage
Maximum DC Reverse Current
at Rated DC Blocking Voltage
Test Condition
IF = 20mA
IF = 200mA
VR = 10V
Symbol
VF
IR
RB520S-30
400
600
1
Unit
mV
uA
REV.2, Oct-2010, KSHR42




LITE-ON

RB520S-30 Datasheet Preview

RB520S-30 Datasheet

SURFACE MOUNT SCHOTTKY BARRIER DIODE

No Preview Available !

RATING AND CHARACTERISTIC CURVES
RB520S-30
FIG.1- TY PICAL FORWORD CHARACTERISTICS
1000
100
10
125°C
1
0.1 75°C
0.01
0.001
0
25°C
-25°C
0.1 0.2 0.3 0.4 0.5 0.6
VF, INSTANTANEOUS FORWARD VOLT AGE, (V)
O
0.7
FIG.3- TYPICAL JUNCTION CAPACITANCE
30
FIG.2- TYPICAL REVERSE CHARACTERISTICS
125
100
85
75
1
25
0.01
0
-25
5 10 15 20 25
VR, INSTANTANEOUS REVE RSE VOLTAGE, (V)
30
FIG.4- FORWARD CURRENT DERATING CURVE
250
200
20
150
100
10
50
0
0
0 25 50 75 100 125 150
0 10 20 30 40
VR, REVERSE VOLTA GE, (V)
TA , AMBIENT TEMA ERATURE, ()
Device Marking :
Device P/N
RB520S-30
Marking
B
Equivalent Circuit Diagram


Part Number RB520S-30
Description SURFACE MOUNT SCHOTTKY BARRIER DIODE
Maker LITE-ON
