LTC-5836E Datasheet LED Display

Manufacturer: LITE-ON Electronics

Download the LTC-5836E datasheet PDF. This datasheet also includes the LTC-5836E_LITE variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

LTC-5836E led display by LITE-ON Electronics - Datasheet Preview — Note: The manufacturer provides a single datasheet file (LTC-5836E_LITE-ONElectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	LTC-5836E
Manufacturer	LITE-ON Electronics
File Size	358.41 KB
Description	LED Display
Download	LTC-5836E Download (PDF)

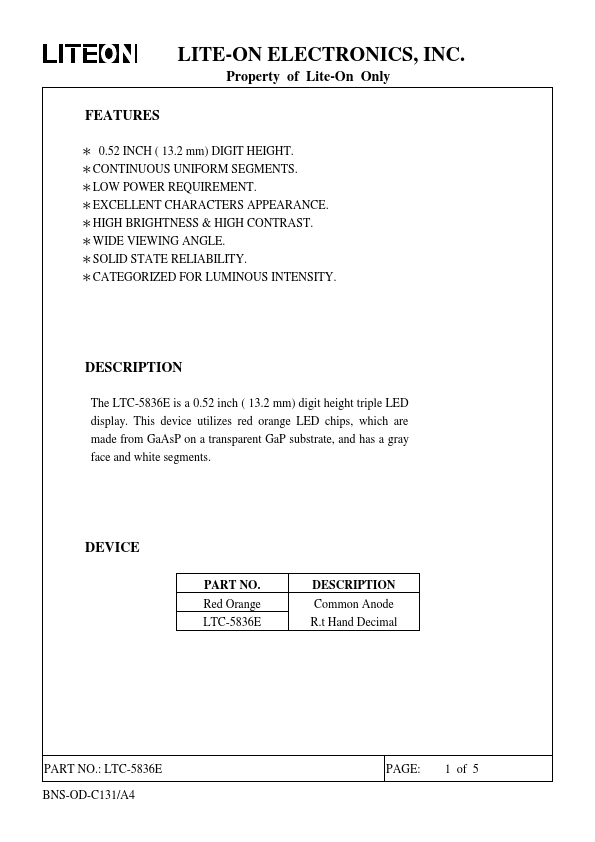

General Description

The LTC-5836E is a 0.52 inch ( 13.2 mm) digit height triple LED display.

This device utilizes red orange LED chips, which are made from GaAsP on a transparent GaP substrate, and has a gray face and white segments.

DEVICE PART NO.

Overview

LED Display Product Data Sheet LTC-5836E Spec No.: DS-30-96-310 Effective Date: 09/06/2000 Revision: - LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp.

/ Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C.

Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto LITE-ON ELECTRONICS, INC.

Key Features

＊ 0.52 INCH ( 13.2 mm) DIGIT HEIGHT. ＊.
