LTP-2157AG LED Display

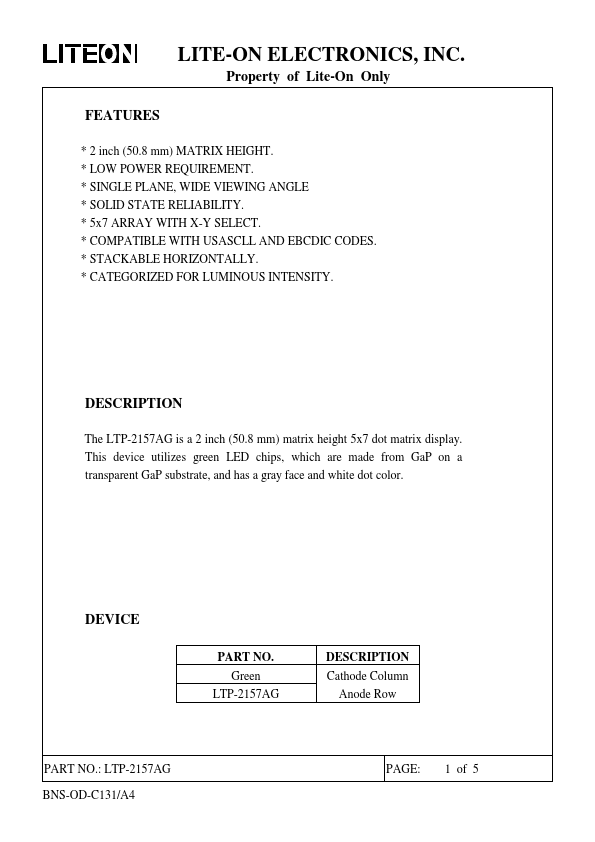

The LTP-2157AG is a 2 inch (50.8 mm) matrix height 5x7 dot matrix display. This device utilizes green LED chips, which are made from GaP on a transparent GaP substrate, and has a gray face and white dot color. DEVICE PART NO. Green LTP-2157AG DESCRIPTION Cathode Column Anode Row PART NO.: LTP-21.

LTP-2157AG Features

* 2 inch (50.8 mm) MATRIX HEIGHT.

* LOW POWER REQUIREMENT.

* SINGLE PLANE, WIDE VIEWING ANGLE

* SOLID STATE RELIABILITY.

* 5x7 ARRAY WITH X-Y SELECT.

* COMPATIBLE WITH USASCLL AND EBCDIC CODES.

* STACKABLE HORIZONTALLY.

* CATEGORIZED FOR LUMINOUS INTENSITY. DESCRIPTIO

LTP-2157AG Datasheet (353.95 KB)

LTP-2157AG Datasheet Preview — Preview of LTP-2157AG PDF

Datasheet Details

Part number:

LTP-2157AG

Manufacturer:

LITE-ON Electronics

File Size:

353.95 KB

Description:

Led display.
