LTS-315AJD - LED Display

Download the LTS-315AJD datasheet PDF. This datasheet also covers the LTS315AJD_LITE variant, as both devices belong to the same led display family and are provided as variant models within a single manufacturer datasheet.

Description

The LTS-315AJD is a 0.3 inch (7.62 mm) digit height single digit seven-segment display.

This device utilizes AlInGaP hyper red LED chips, which are made from AlInGaP on a non-transparent GaAs substrate, and has a gray face and white segments.

PART NO.

Features

  • ＊0.3 inch (7.62 mm) DIGIT HEIGHT. ＊.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LTS315AJD_LITE-ONElectronics.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number LTS-315AJD
Manufacturer LITE-ON Electronics
File Size 357.72 KB
Description LED Display
Datasheet download datasheet LTS-315AJD Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LTS-315AG LED Display LITE-ON
LTS-315AHR LED Display LITE-ON
LTS-315AP-Q LED Display LITE-ON
LTS-312AE LED Display LITE-ON
LTS-312AG LED Display LITE-ON

Other Datasheets by LITE-ON Electronics

Part Number Description
LTS-315AE NUMERIC LED DISPLAY
LTS-315AP NUMERIC LED DISPLAY
LTS-315AWC NUMERIC LED DISPLAY
LTS-315AY NUMERIC LED DISPLAY
LTS-312AHR LED DISPLAY

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

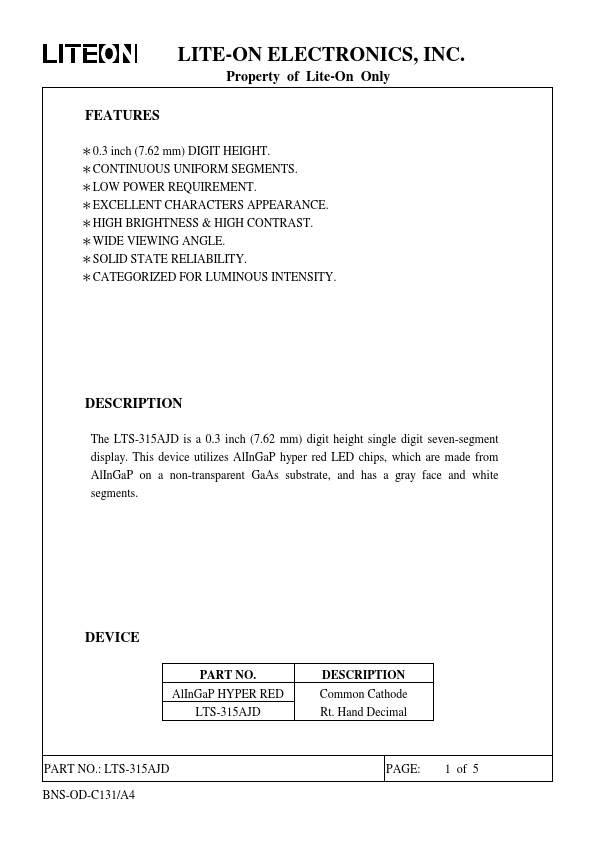

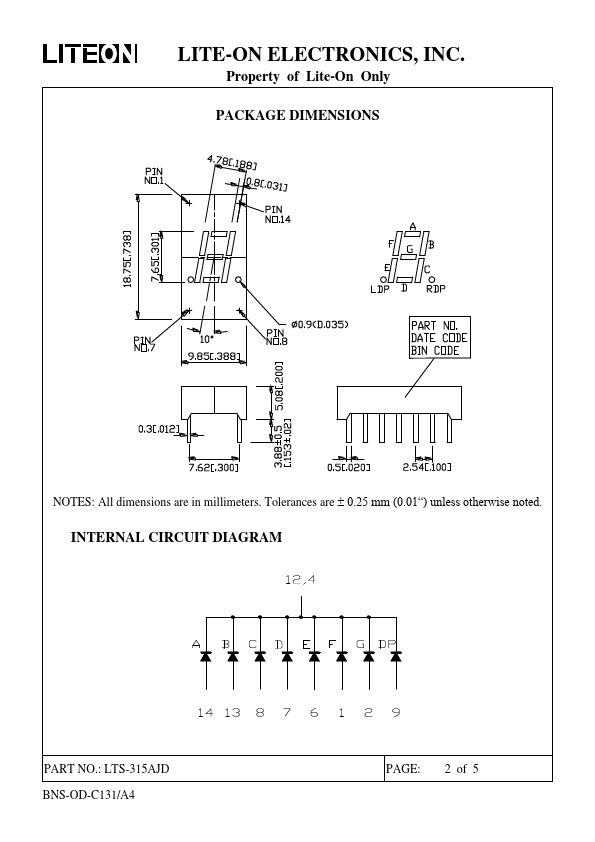

LED Display Product Data Sheet LTS-315AJD Spec No.: DS30-2001-219 Effective Date: 11/27/2001 Revision: - LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto LITE-ON ELECTRONICS, INC. Property of Lite-On Only FEATURES ＊0.3 inch (7.62 mm) DIGIT HEIGHT. ＊CONTINUOUS UNIFORM SEGMENTS. ＊LOW POWER REQUIREMENT. ＊EXCELLENT CHARACTERS APPEARANCE. ＊HIGH BRIGHTNESS & HIGH CONTRAST. ＊WIDE VIEWING ANGLE. ＊SOLID STATE RELIABILITY. ＊CATEGORIZED FOR LUMINOUS INTENSITY. DESCRIPTION The LTS-315AJD is a 0.3 inch (7.62 mm) digit height single digit seven-segment display.
