LUR180 Datasheet PDF (Glass Passivated Junction Ultra Fast Rectifiers)

LUR180 - Glass Passivated Junction Ultra Fast Rectifiers

Features

Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
High temperature metallurgically bonded construction.
Glass passivated junction.
Capable of meeting environmental standards of MIL-S-19500.
For use in high frequency rectifier circuits.
Fast switching for high efficiency.
High temperature soldering guaranteed: 260°C/10 seconds.
0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data Case: JEDEC DO-41, mo.

Datasheet Details

Part number	LUR180
Manufacturer	LRC
File Size	240.49 KB
Description	Glass Passivated Junction Ultra Fast Rectifiers
Datasheet	LUR180 Datasheet

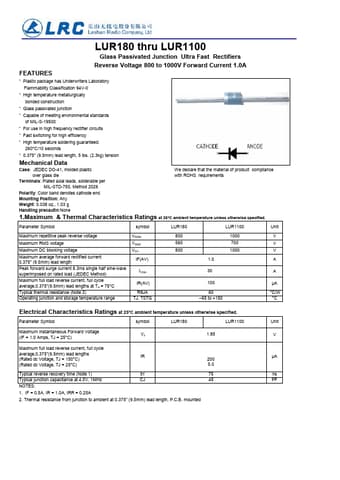

Additional preview pages of the LUR180 datasheet.

📁 Similar Datasheet

LUR11240H-S4-PF - SUPER BRIGHT TOWER TYPE LED LAMPS (LIGITEK ELECTRONICS)

LUR11C - T-1 (3mm) SOLID STATE LAMP (SunLED)

LUR11D - T-1 (3mm) SOLID STATE LAMP (SunLED)

LUR11D14V - T-1 (3mm) SOLID STATE LAMP (SunLED)

LUR11D5V - T-1 (3mm) SOLID STATE LAMP (SunLED)

LUR11W - T-1 (3mm) SOLID STATE LAMP (SunLED)

LUR12C - T-1 3/4 (5mm) SOLID STATE LAMP (SunLED)

LUR12D - T-1 3/4 (5mm) SOLID STATE LAMP (SunLED)

LUR12D14V - T-1 3/4 (5mm) SOLID STATE LAMP (SunLED)

LUR12D5V - T-1 3/4 (5mm) SOLID STATE LAMP (SunLED)

Full PDF Text Transcription

Click to expand full text

LUR180 thru LUR1100 Glass Passivated Junction Ultra Fast Rectifiers Reverse Voltage 800 to 1000V Forward Current 1.0A FEATURES * Plastic package has Underwriters Laboratory Flammability Classification 94V-0 * High temperature metallurgically bonded construction * Glass passivated junction * Capable of meeting environmental standards of MIL-S-19500 * For use in high frequency rectifier circuits * Fast switching for high efficiency * High temperature soldering guaranteed: 260°C/10 seconds * 0.375" (9.5mm) lead length, 5 lbs. (2.
