LD5763K3 - High Voltage Green-Mode PWM Controller

Name: LD5763K3
SKU: LD5763K3-1563779

Leadtrend

The LD5763K3 by Leadtrend is a High Voltage Green-Mode PWM Controller. Below is the official datasheet preview.

Datasheet Details

Part number	LD5763K3
Manufacturer	Leadtrend
File Size	1.22 MB
Description	High Voltage Green-Mode PWM Controller
Datasheet	LD5763K3-Leadtrend.pdf

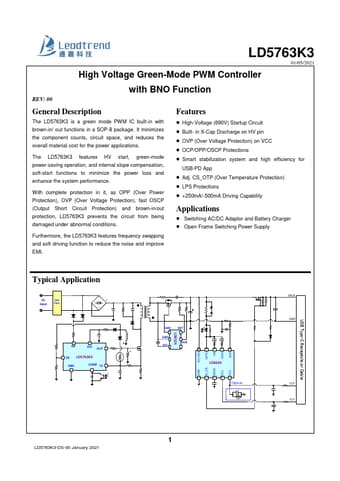

Additional preview pages of the LD5763K3 datasheet.

The LD5763K3 is a green mode PWM IC built-in with brown-in/ out functions in a SOP-8 package.

HV start, green-mode power-saving operation, and internal slope compensation, soft-start functions to minimize the power loss and enhance the system performance. With complete protection in it, as OPP (Over Power Protection), OVP (Over Voltage Protection), fast OSCP (Output Short Circuit Protection) and brown-in/out protection, LD5763K3 prevents the circuit from being damaged under abnormal conditions. Furthermore, the LD5763K3 features frequency swapping and soft driving function to reduce the.
