3KP22CA, 3KP5.0A, 3000W Transient Voltage Suppressor

The 3KP series of high current uni/bi-directional transient suppressors are designed for A.C. line protection and high power DC bus clamping applications. These devices offer uni/bi-directional port protection from 5.0 volts to 220 volts. They provide a clamping voltage lower than the avalanche vol.

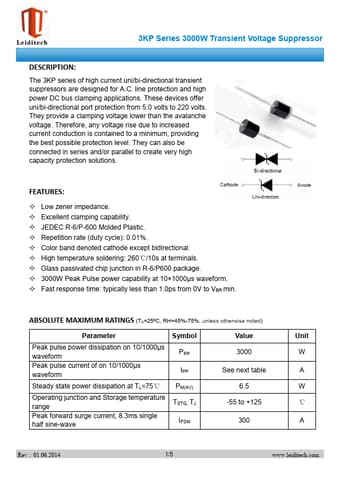

Datasheet Preview Page 1

3KP5.0A-leiditech.pdf

3KP22CA Datasheet Preview — This datasheet PDF includes multiple part numbers: 3KP22CA, 3KP5.0A. Please refer to the document for exact specifications by model.

3KP22CA Datasheet Preview Page 2

3KP22CA Datasheet Preview Page 3

Datasheet Details

Part number:

3KP22CA, 3KP5.0A

Manufacturer:

Leiditech

File Size:

675.04 KB

Description:

3000W Transient Voltage Suppressor

Note:

This datasheet PDF includes multiple part numbers: 3KP22CA, 3KP5.0A.
Please refer to the document for exact specifications by model.

3KP22CA Features

* Low zener impedance.

* Excellent clamping capability.

* JEDEC R-6/P-600 Molded Plastic.

* Repetition rate (duty cycle): 0.01%.

* Color band denoted cathode except bidirectional.

* High temperature soldering: 260℃/10s at terminals.

* Glass passivated chip junction in R-
