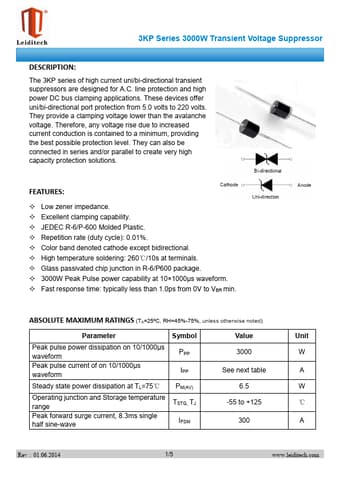

3KP26CA Overview
The 3KP series of high current uni/bi-directional transient suppressors are designed for A.C. line protection and high power DC bus clamping applications. These devices offer uni/bi-directional port protection from 5.0 volts to 220 volts.
3KP26CA Key Features
- Low zener impedance
- Excellent clamping capability
- JEDEC R-6/P-600 Molded Plastic
- Repetition rate (duty cycle): 0.01%
- Color band denoted cathode except bidirectional
- High temperature soldering: 260℃/10s at terminals
- Glass passivated chip junction in R-6/P600 package
- 3000W Peak Pulse power capability at 10×1000μs waveform
- Fast response
