LTC4447 - High Speed Synchronous N-Channel MOSFET Driver

Linear Technology

The LTC4447 by Linear Technology is a High Speed Synchronous N-Channel MOSFET Driver. Below is the official datasheet preview.

📥 Download Datasheet

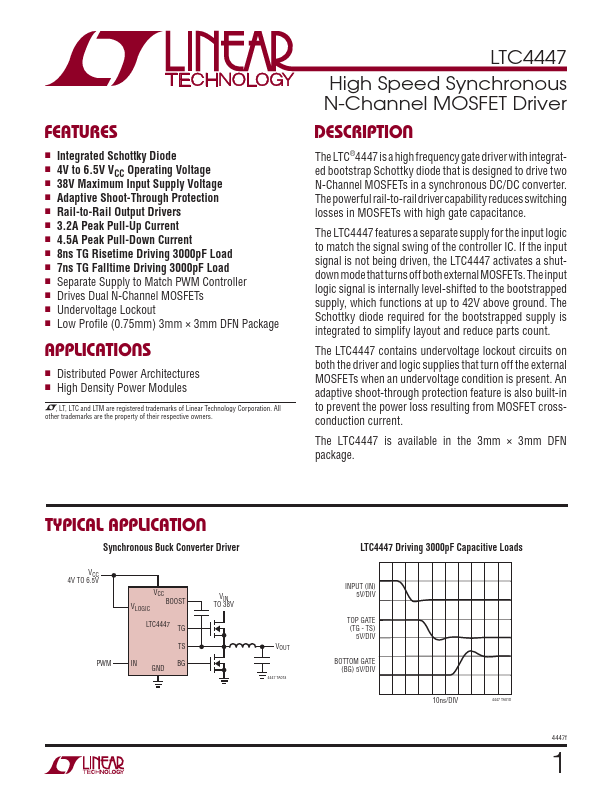

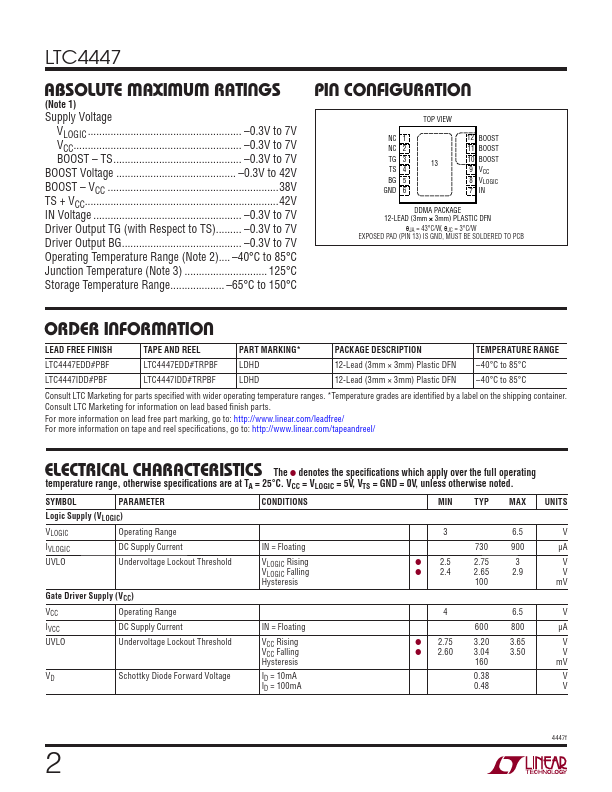

LTC4447 High Speed Synchronous N-Channel MOSFET Driver by Linear Technology - Datasheet Preview — Official preview page of the **LTC4447** High Speed Synchronous N-Channel MOSFET Driver datasheet (Linear Technology).

Datasheet Details

Part number	LTC4447
Manufacturer	Linear Technology
File Size	176.88 KB
Description	High Speed Synchronous N-Channel MOSFET Driver
Datasheet	LTC4447_LinearTechnology.pdf
Additional preview pages of the LTC4447 datasheet.

LTC4447 Product details

Description

The LTC®4447 is a high frequency gate driver with integrated bootstrap Schottky diode that is designed to drive two N-Channel MOSFETs in a synchronous DC/DC converter.

Features

Integrated Schottky Diode.
4V to 6.5V VCC Operating Voltage.
38V Maximum Input Supply Voltage.
Adaptive Shoot-Through Protection.
Rail-to-Rail Output Drivers.
3.2A Peak Pull-Up Current.
4.5A Peak Pull-Down Current.
8ns TG Risetime Driving 3000pF Load.
7ns TG Falltime Driving 3000pF Load.
Separate Supply to Match PWM Controller.
Drives Dual N-Channel MOSFETs.
Undervoltage Lockout.
Low Proﬁle (0.75mm) 3mm × 3mm DFN Package.
