LTP-2344E - LED Display

This page provides the datasheet information for the LTP-2344E, a member of the LTP-2344E_Lite LED Display family.

Description

The LTP-2344E is a 1.854inch (47.1mm) matrix height 4x4 dot matrix display.

This device utilizes red orange LED chips, which are made from GaAsP on a transparent GaP substrate, and has a gray face and white dot color.

PART NO.

Features

  • 1.854 INCH (47.1mm) MATRIX HEIGHT.
  • LOW POWER.

📥 Download Datasheet

Datasheet preview – LTP-2344E

Datasheet Details

Part number LTP-2344E
Manufacturer Lite-On Technology
File Size 343.49 KB
Description LED Display
Datasheet download datasheet LTP-2344E Datasheet
Additional preview pages of the LTP-2344E datasheet.

📁 Similar Datasheet

Other Datasheets by Lite-On Technology

Full PDF Text Transcription

Click to expand full text

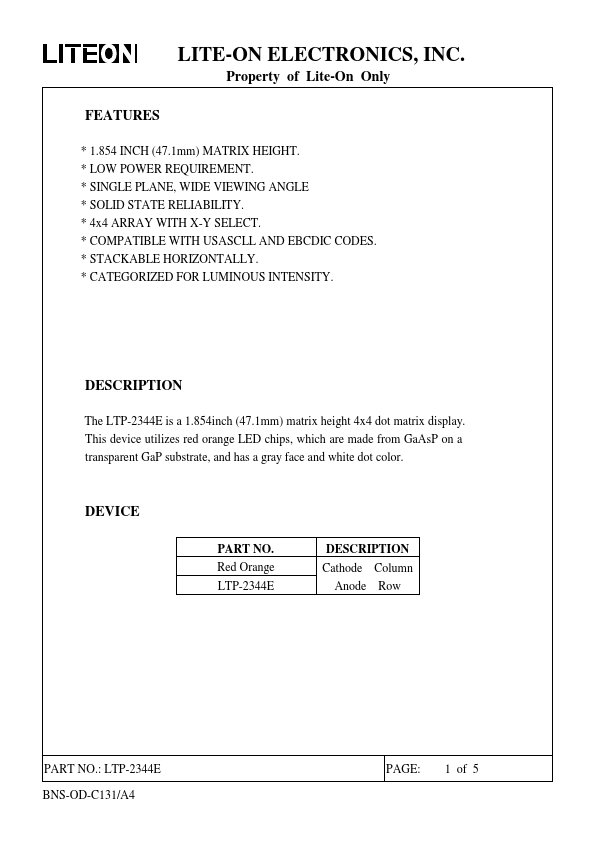

LED Display Product Data Sheet LTP-2344E Spec No.: DS-30-97-261 Effective Date: 12/12/2000 Revision: - LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto LITE-ON ELECTRONICS, INC. Property of Lite-On Only FEATURES * 1.854 INCH (47.1mm) MATRIX HEIGHT. * LOW POWER REQUIREMENT. * SINGLE PLANE, WIDE VIEWING ANGLE * SOLID STATE RELIABILITY. * 4x4 ARRAY WITH X-Y SELECT. * COMPATIBLE WITH USASCLL AND EBCDIC CODES. * STACKABLE HORIZONTALLY. * CATEGORIZED FOR LUMINOUS INTENSITY. DESCRIPTION The LTP-2344E is a 1.854inch (47.1mm) matrix height 4x4 dot matrix display.
