LTV-357T - Photocoupler

Download the LTV-357T datasheet PDF (LTV-357T_Lite included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for photocoupler.

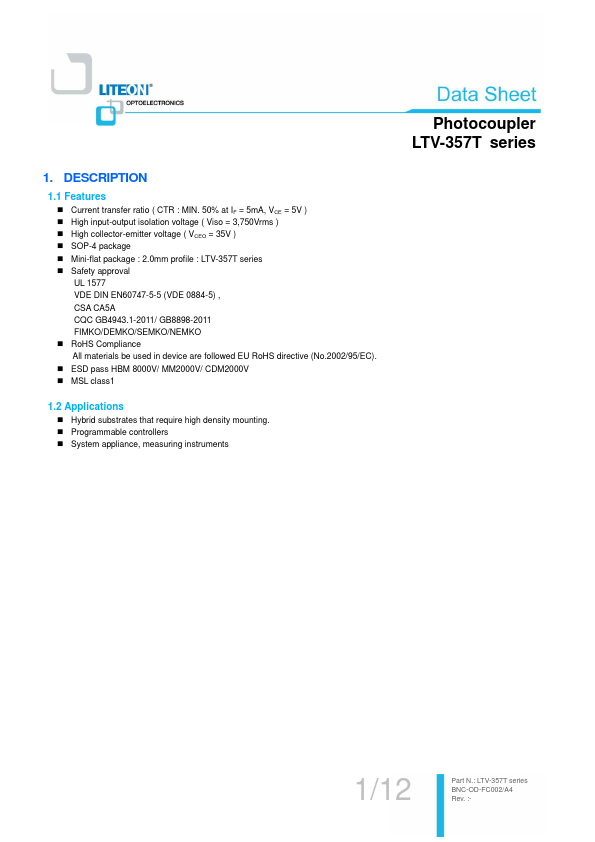

Description

1.1

Features

  • Current transfer ratio ( CTR : MIN. 50% at IF = 5mA, VCE = 5V ) High input-output isolation voltage ( Viso = 3,750Vrms ) High collector-emitter voltage ( VCEO = 35V ) SOP-4 package Mini-flat package : LTV-357T series Safety approval UL 1577 VDE DIN EN60747-5-5 (VDE 0884-5) , CSA CA5A CQC GB4943.1-2011/ GB8898-2011 FIMKO/DEMKO/SEMKO/NEMKO RoHS Compliance All materials be used in device are followed EU RoHS directive (No.2002/95/EC, 2011/65/EU, and 2015/863). ESD pass HBM 8000V/ MM2000V/ CDM2000V.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LTV-357T_Lite-OnTechnology.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number LTV-357T
Manufacturer Lite-On Technology
File Size 371.35 KB
Description Photocoupler
Datasheet download datasheet LTV-357T Datasheet

📁 Similar Datasheet

Other Datasheets by Lite-On Technology
  • LTV-354T - Photocoupler
  • LTV-335T - Hybrid substrates that require high density mounting
  • LTV-817 - Photocoupler
  • LTV-827 - High Density Mounting Type Photocoupler
  • LTV-847 - High Density Mounting Type Photocoupler
  • LTV817 - Photocoupler
  • LTV824 - (LTV8xx) LTV-844x
  • LTV827 - High Density Mounting Type Photocoupler

Full PDF Text Transcription

Click to expand full text
Photocoupler Product Data Sheet LTV-357T Spec No. :DS70-2001-012 Effective Date: 12/25/2018 Revision: P LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto Photocoupler LTV-357T series 1. DESCRIPTION 1.1 Features Current transfer ratio ( CTR : MIN. 50% at IF = 5mA, VCE = 5V ) High input-output isolation voltage ( Viso = 3,750Vrms ) High collector-emitter voltage ( VCEO = 35V ) SOP-4 package Mini-flat package : LTV-357T series Safety approval UL 1577 VDE DIN EN60747-5-5 (VDE 0884-5) , CSA CA5A CQC GB4943.
