LTP-587G - LED Display

This page provides the datasheet information for the LTP-587G, a member of the LTP-587G_Lite LED Display family.

Description

The LTP-587G is a 0.5 inch (12.7 mm) height 16-segment single digit alphanumeric display.

This device utilizes green LED chips, which are made from GaP on a transparent GaP substrate, and has a black face and white segments.

PART NO.

Features

  • ＊0.5 inch (12.7 mm) DIGIT HEIGHT. ＊.

📥 Download Datasheet

Datasheet preview – LTP-587G

Datasheet Details

Part number LTP-587G
Manufacturer Lite-On Technology Corporation
File Size 351.73 KB
Description LED Display
Datasheet download datasheet LTP-587G Datasheet
Additional preview pages of the LTP-587G datasheet.

📁 Similar Datasheet

  • LTP-587E - LED Display (LITE-ON Electronics)
  • LTP-587HR - LED Display (LITE-ON Electronics)
  • LTP-587JD - LED Display (LITE-ON)
  • LTP-587P - SEGMENTED ALPHANUMERIC LED DISPLAY (LITE-ON Electronics)
  • LTP-587Y - SEGMENTED ALPHANUMERIC LED DISPLAY (LITE-ON Electronics)
  • LTP-537E - LED Display (LITE-ON)
  • LTP-537HR - LED Display (LITE-ON)
  • LTP-537JD - LED Display (LITE-ON)
  • LTP-1057AE - DOT MATRIX LED DISPLAY (LITE-ON)
  • LTP-1057AG - LED Display (LITE-ON)
Other Datasheets by Lite-On Technology Corporation

Full PDF Text Transcription

Click to expand full text

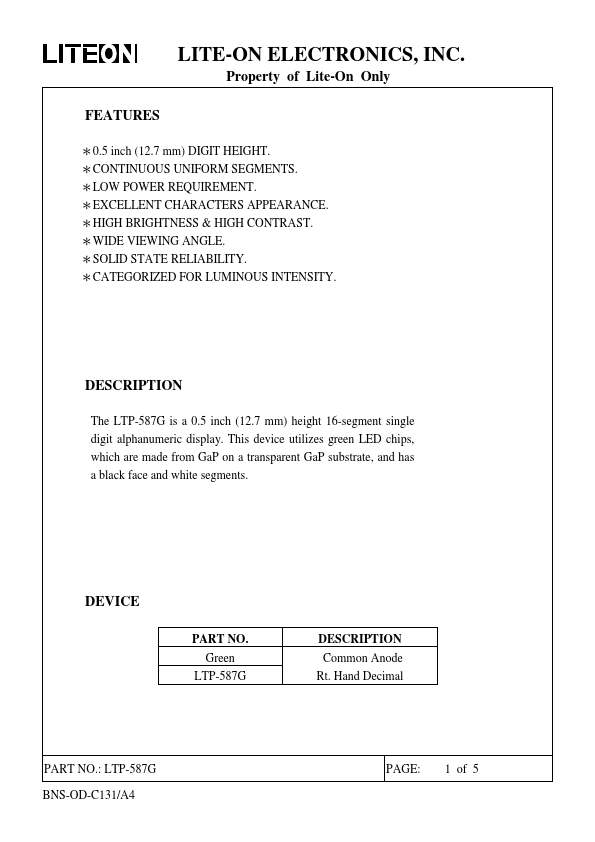

LED Display Product Data Sheet LTP-587G Spec No.: DS-30-96-211 Effective Date: 12/07/2000 Revision: - LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON Technology Corp. / Optoelectronics No.90,Chien 1 Road, Chung Ho, New Taipei City 23585, Taiwan, R.O.C. Tel: 886-2-2222-6181 Fax: 886-2-2221-1948 / 886-2-2221-0660 http://www.liteon.com/opto LITE-ON ELECTRONICS, INC. Property of Lite-On Only FEATURES ＊0.5 inch (12.7 mm) DIGIT HEIGHT. ＊CONTINUOUS UNIFORM SEGMENTS. ＊LOW POWER REQUIREMENT. ＊EXCELLENT CHARACTERS APPEARANCE. ＊HIGH BRIGHTNESS & HIGH CONTRAST. ＊WIDE VIEWING ANGLE. ＊SOLID STATE RELIABILITY. ＊CATEGORIZED FOR LUMINOUS INTENSITY. DESCRIPTION The LTP-587G is a 0.5 inch (12.7 mm) height 16-segment single digit alphanumeric display.
