30KPA75A - TVS Diode

Download the 30KPA75A datasheet PDF (30KPA28A included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for tvs diode.

Description

The 30KPA Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.

Features

  • 30kW peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%.
  • Glass passivated chip junction in P600 package.
  • Fast response time: typically less than 1.0ps from 0 Volts to BV min.
  • Excellent clamping capability.
  • Typical failure mode is short from over-specified voltage or current.
  • Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c.
  • IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (30KPA28A-Littelfuse.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • 30KPA75A - 30000W Leaded Type Transient Voltage Suppressors (CITC)
  • 30KPA75A - 30kW POWER TVS COMPONENT (Protek Devices)
  • 30KPA75A - TVS (GOOD-ARK)
  • 30KPA75A - 30KW Transient Voltage Suppressor (TAITRON)
  • 30KPA75A - POWER TVS COMPONENT (Protek Devices)
  • 30KPA75A - 30000W Transient Voltage Suppressor (HUAAN)
  • 30KPA75CA - 30000W Leaded Type Transient Voltage Suppressors (CITC)
  • 30KPA75CA - 30KW Transient Voltage Suppressor (TAITRON)
  • 30KPA75CA - TVS (GOOD-ARK)
  • 30KPA75CA - 30000W Transient Voltage Suppressor (HUAAN)
Other Datasheets by Littelfuse

Full PDF Text Transcription

Click to expand full text

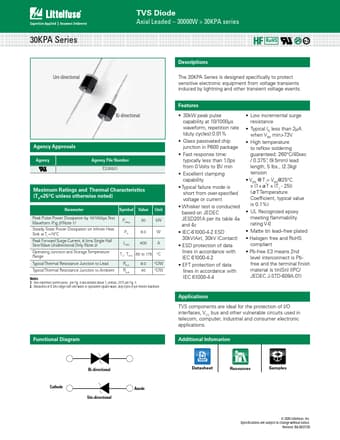

30KPA Series TVS Diode Axial Leaded – 30000W > 30KPA series RoHS Pb e3 Uni-directional Bi-directional Agency Approvals Agency Agency File Number E230531 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted) Parameter Symbol Value Unit Peak Pulse Power Dissipation by 10/1000μs Test Waveform (Fig.2)(Note 1) PPPM 30 kW Steady State Power Dissipation on Infinite Heat Sink at TL=75ºC PD 8.0 W Peak Forward Surge Current, 8.3ms Single Half Sine Wave Unidirectional Only (Note 2) IFSM 400 A Operating Junction and Storage Temperature Range TJ, TSTG -55 to 175 °C Typical Thermal Resistance Junction to Lead RθJL Typical Thermal Resistance Junction to Ambient RθJA 8.0 °C/W 40 °C/W Notes: 1. Non-repetitive current pulse , per Fig.
