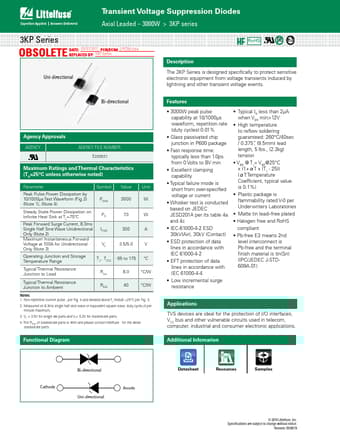

3KP64CA Overview
The 3KP Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. Non-repetitive current pulse , per Fig. 4 and derated above TJ (initial) =25OC per Fig.
3KP64CA Key Features
- 3000W peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles):0.01%
- Glass passivated chip junction in P600 package
- Fast response time: typically less than 1.0ps from 0 Volts to BV min
- Excellent clamping capability
- Typical failure mode is short from over-specified voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact)
- E SD protection of data lines in accordance with IEC 61000-4-2
- E FT protection of data lines in accordance with IEC 61000-4-4
- Low incremental surge resistance
