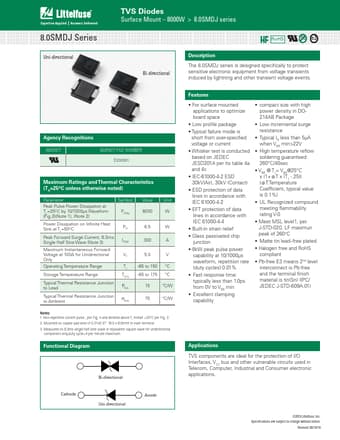

8.0SMDJ12CA Datasheet - Littelfuse

TVS Diodes

8.0SMDJ12CA Features

* For surface mounted applications to optimize board space

* Low profile package

* Typical failure mode is short from over-specified voltage or current

* Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c

* IEC-61000-4-2 ESD 30kV(Air

8.0SMDJ12CA General Description

The 8.0SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. Agency Recognitions AGENCY AGENCY FILE NUMBER E230531 Maximum Ratings and Thermal Characteristics (TA=25OC unless otherwise noted.
