HE721B1200
HE721B1200 is Miniature Dual In-line Reed Relay manufactured by Littelfuse.
- Part of the HE700 comparator family.
- Part of the HE700 comparator family.
Reed Relays
DIL Packaged > HE700

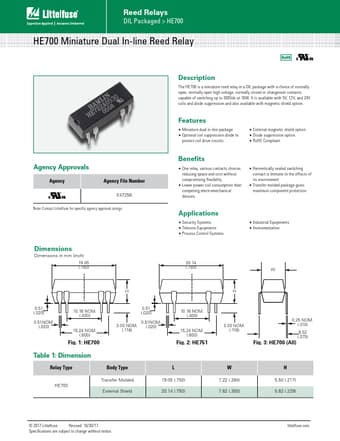

HE700 Miniature Dual In-line Reed Relay
Agency Approvals
Agency
Agency File Number
E47258
Note: Contact Littelfuse for specific agency approval ratings.
Dimensions
Dimensions in mm (inch)
19.05 (.750)
Description
The HE700 is a miniature reed relay in a DIL package with a choice of normally open, normally open high voltage, normally closed or changeover contacts capable of switching up to 300Vdc at 10W. It is available with 5V, 12V, and 24V coils and diode suppression and also available with magnetic shield option.
Features
- Miniature dual in-line package
- Optional coil suppression diode to protect coil drive circuits
- External magnetic shield...
