Q8008VH4, Q8008L6, Triac

This 8 Amp bidirectional solid state switch series is designed for AC switching and phase control applications such as motor speed and temperature modulation controls, lighting controls, and static switching relays. Sensitive type components guarantee gate control in Quadrants I & IV as needed for d.

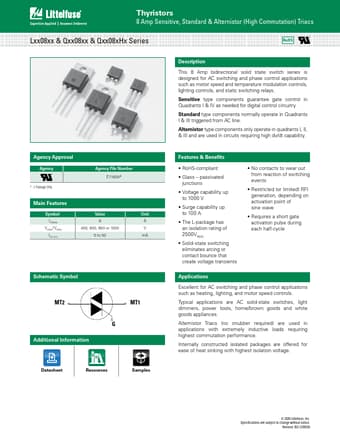

Q8008L6-Littelfuse.pdf

Q8008VH4 Datasheet Preview — This datasheet PDF includes multiple part numbers: Q8008VH4, Q8008L6. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

Q8008VH4, Q8008L6

Manufacturer:

Littelfuse ↗

File Size:

813.41 KB

Description:

Triac

Note:

This datasheet PDF includes multiple part numbers: Q8008VH4, Q8008L6.
Please refer to the document for exact specifications by model.

Q8008VH4 Features

* Symbol IT(RMS) VDRM/ VRRM IGT (Q1) Value 8 400, 600, 800 or 1000 5 to 50 Unit A V mA Schematic Symbol MT2 Additional Information MT1 G Datasheet Resources Samples Features & Benefits

* RoHS-compliant

* Glass

* passivated junctions

* Voltage capability up to

Q8008VH4 Distributors
