SMF8.0A, SMF5.0A Datasheet - Littelfuse

SMF8.0A, SMF5.0A, Transient Voltage Suppression Diodes

The SMF series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. SMF package is 50% smaller in footprint when compare to SMA package and deliverying one of the low height profiles (1.1mm) in the industr.

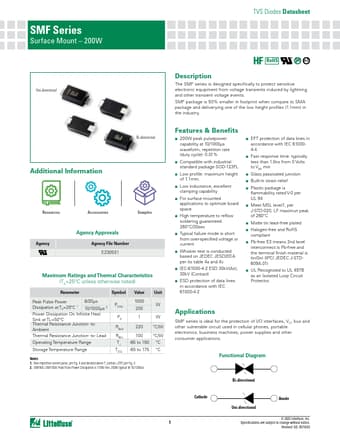

Datasheet Preview Page 1

SMF5.0A-Littelfuse.pdf

This datasheet PDF includes multiple part numbers: SMF8.0A, SMF5.0A. Please refer to the document for exact specifications by model.
SMF8.0A Datasheet Preview Page 2 SMF8.0A Datasheet Preview Page 3

Datasheet Details

Part number:

SMF8.0A, SMF5.0A

Manufacturer:

Littelfuse ↗

File Size:

812.56 KB

Description:

Transient Voltage Suppression Diodes

Note:

This datasheet PDF includes multiple part numbers: SMF8.0A, SMF5.0A.
Please refer to the document for exact specifications by model.

SMF8.0A Features

* & Benefits

* 200W peak pulsepower capability at 10/1000µs waveform, repetition rate (duty cycle): 0.01%

* Compatible with industrial standard package SOD-123FL

* Low profile: maximum height of 1.1mm.

* Low inductance, excellent clamping capability

* For surface mounted applicat
