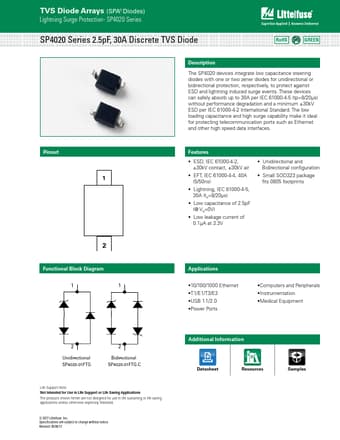

SP4020 - TVS Diode Arrays

Description

The SP4020 devices integrate low capacitance steering diodes with one or two zener diodes for unidirectional or bidirectional protection, respectively, to protect against ESD and lightning induced surge events.

Features

  • ESD, IEC 61000-4-2, ±30kV contact, ±30kV air.
  • EFT, IEC 61000-4-4, 40A (5/50ns).
  • Lightning, IEC 61000-4-5, 30A (tP=8/20μs).
  • Low capacitance of 2.5pF (@ VR=0V).
  • Low leakage current of 0.1μA at 3.3V.
  • Unidirectional and Bidirectional configuration.
  • Small.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SP40200C Schottky Barrier Rectifiers Eris
SP4020C Schottky Barrier Rectifiers Eris
SP40001 400MHz Low-loss SAW Filter 45MHz Bandwidth SIPAT
SP40001 400MHz Low-loss SAW Filter 45MHz Bandwidth SIPAT
SP40001 400MHz Low-loss SAW Filter 45MHz Bandwidth SIPAT

Other Datasheets by Littelfuse

Part Number Description
SP4021 TVS Diode Arrays
SP4022 15A Discrete TVS Diode
SP4010 Diode Array
SP4031 TVS Diode Arrays
SP4042 3.3V Diode Array

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
SP4020 TVS Diode Arrays (SPA® Diodes) Lightning Surge Protection- SP4020 Series SP4020 Series 2.5pF, 30A Discrete TVS Diode RoHS Pb GREEN Description The SP4020 devices integrate low capacitance steering diodes with one or two zener diodes for unidirectional or bidirectional protection, respectively, to protect against ESD and lightning induced surge events. These devices can safely absorb up to 30A per IEC 61000-4-5 (tp=8/20μs) without performance degradation and a minimum ±30kV ESD per IEC 61000-4-2 International Standard. The low loading capacitance and high surge capability make it ideal for protecting telecommunication ports such as Ethernet and other high speed data interfaces.
