SZ1SMB130AT3G - TVS Diodes

Download the SZ1SMB130AT3G datasheet PDF (SZ1SMB5.0AT3G included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for tvs diodes.

Description

The SZ1SMB series is designed to protect voltage sensitive components from high voltage, high energy transients.

They have excellent clamping and high surge capability, as well as fast response time.

Features

  • & Benefits.
  • Zener Transient Overvoltage Suppressors.
  • Working Peak Reverse Voltage Range.
  • 5.0 V to 170 V for uni-directional, and 10 V to 78 V for bi-directional.
  • Standard Avalanche Breakdown Voltage Range.
  • 6.4 V to 209 V for unidirectional, 11.1 V to 95.80 V for bi-directional.
  • Peak Power.
  • 600 W @ 1.0 ms.
  • ESD protection of data lines in accordance with IEC 61000-4-2 30kV(Air), 30kV (Contact).
  • ESD Rating of Class 3 (> 16 kV) per Human Body M.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SZ1SMB5.0AT3G-Littelfuse.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Other Datasheets by Littelfuse

Full PDF Text Transcription

Click to expand full text

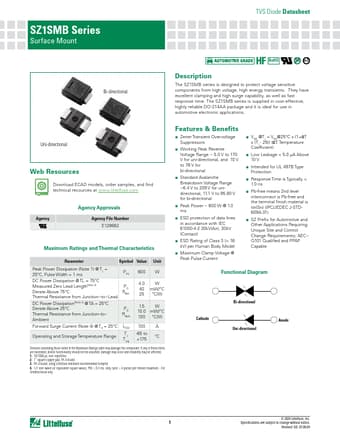

SZ1SMB Series Surface Mount TVS Diode Datasheet RoHS Pb e3 Bi-directional Description The SZ1SMB series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping and high surge capability, as well as fast response time. The SZ1SMB series is supplied in cost-effective, highly reliable DO-214AA package and it is ideal for use in automotive electronic applications. Uni-directional Web Resources Download ECAD models, order samples, and find technical recources at www.littelfuse.
