SZ1SMC12AT3G, SZ1SMC5.0AT3G Datasheet - Littelfuse

SZ1SMC12AT3G, SZ1SMC5.0AT3G, TVS Diodes

The SZ1SMC series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SZ1SMC series is supplied in cost-effective, highly reliable DO-214AB packa.

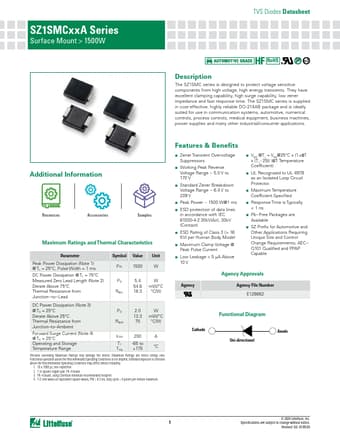

Datasheet Preview Page 1

SZ1SMC5.0AT3G-Littelfuse.pdf

This datasheet PDF includes multiple part numbers: SZ1SMC12AT3G, SZ1SMC5.0AT3G. Please refer to the document for exact specifications by model.
SZ1SMC12AT3G Datasheet Preview Page 2 SZ1SMC12AT3G Datasheet Preview Page 3

Datasheet Details

Part number:

SZ1SMC12AT3G, SZ1SMC5.0AT3G

Manufacturer:

Littelfuse ↗

File Size:

597.46 KB

Description:

TVS Diodes

Note:

This datasheet PDF includes multiple part numbers: SZ1SMC12AT3G, SZ1SMC5.0AT3G.
Please refer to the document for exact specifications by model.

SZ1SMC12AT3G Features

* & Benefits

* Zener Transient Overvoltage Suppressors

* Working Peak Reverse Voltage Range

* 5.0 V to 170 V

* Standard Zener Breakdown Voltage Range

* 6.4 V to 209 V

* Peak Power

* 1500 W@1 ms

* ESD protection of data lines in accordance with IEC 61000-4-2
