SZSMF15AT1G - TVS Diodes

Product Overview

Littelfuse

📥 Download Datasheet

SZSMF15AT1G TVS Diodes by Littelfuse - Datasheet Preview — Datasheet preview – SZSMF15AT1G

Datasheet Details

Part number	SZSMF15AT1G
Manufacturer	Littelfuse
File Size	764.91 KB
Description	TVS Diodes
Datasheet	SZSMF15AT1G Datasheet
Note	This datasheet PDF includes multiple part numbers: SZSMF15AT1G, SZSMF5.0AT1G. Please refer to the document for exact specifications by model.

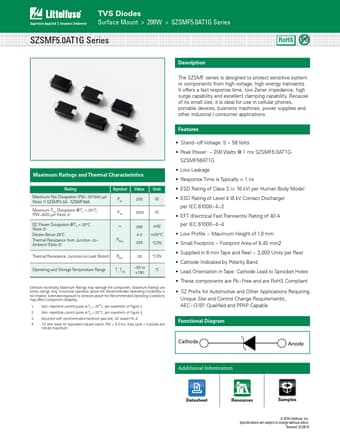

Additional preview pages of the SZSMF15AT1G datasheet.

Product details

Description

The SZSMF series is designed to protect sensitive system or components from high voltage, high energy transients. 10/1000 µs) (Note 1)

Features

Stand.
off Voltage: 5.
58 Volts.
Peak Power.
200 Watts @ 1 ms SZSMF5.0AT1G- SZSMF58AT1G.
Low Leakage.
Response Time is Typically < 1 ns.
ESD Rating of Class 3 (> 16 kV) per Human Body Model.
ESD Rating of Level 4 (8 kV Contact Discharge) per IEC 61000.
4.
2.
EFT (Electrical Fast Transients) Rating of 40 A per IEC 61000.
4.
4.
Low Profile.
Maximum Height of 1.0 mm.
