LP6236 Datasheet - Lowpowersemi

LP6236, High Efficiency 2.0A Boost DC/DC Convertor

The LP6320A is a 800KHz PWM boost switching regulator designed for constant-voltage boost applications. The LP6236 can drive a string of up to 25V. The LP6236 implements a constant frequency 800KHz PWM control scheme. The high frequency PWM operation also saves board space by reducing external compo.

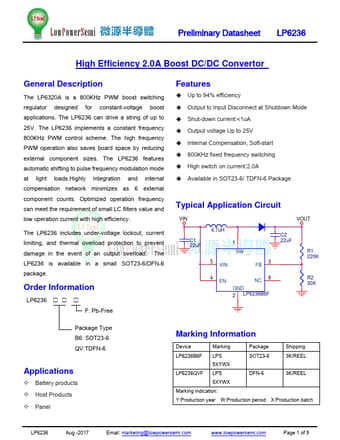

Datasheet Preview Page 1

LP6236-Lowpowersemi.pdf

Preview of LP6236 PDF
LP6236 Datasheet Preview Page 2 LP6236 Datasheet Preview Page 3

Datasheet Details

Part number:

LP6236

Manufacturer:

Lowpowersemi

File Size:

851.69 KB

Description:

High Efficiency 2.0A Boost DC/DC Convertor

LP6236 Features

* automatic shifting to pulse frequency modulation mode at light loads.Highly integration and internal compensation network minimizes as 6 external component counts. Optimized operation frequency can meet the requirement of small LC filters value and low operation current with high efficiency. The LP6
