GBU404 - Single Phase 4.0AMP.Glass Passivated Bridge Rectifiers

This page provides the datasheet information for the GBU404, a member of the GBU401 Single Phase 4.0AMP.Glass Passivated Bridge Rectifiers family.

Datasheet Summary

Features

  • Ideal for printed circuit board Reliable low cost construction Plastic material has Underwriters Laboratory Flammability Classification 94V-0 High case dielectric strength of 1500VRMS Surge overload rating to 150 amperes peak High temperature soldering guaranteed: o 260 C / 10 seconds / .375”, (9.5mm) lead lengths at 5 lbs. , (2.3kg) tension Mechanical Data Case: Molded plastic body Weight: 0. 3 ounce, 8.0 grams Mounting torque: 5 in. lbs. Max. Dimensions in inches and (millimeters) Maximum Ra.

📥 Download Datasheet

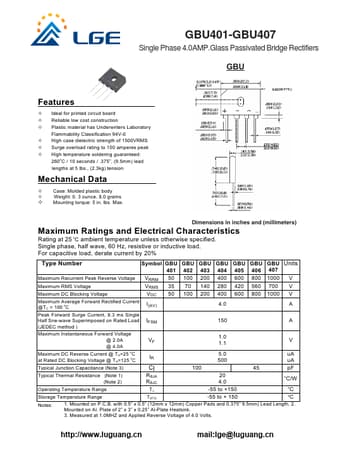

Datasheet preview – GBU404

Datasheet Details

Part number GBU404
Manufacturer Luguang Electronic
File Size 166.51 KB
Description Single Phase 4.0AMP.Glass Passivated Bridge Rectifiers
Datasheet download datasheet GBU404 Datasheet
Additional preview pages of the GBU404 datasheet.

📁 Similar Datasheet

  • GBU404 - GLASS PASSIVATED CHIP SINGLE-PHASE BRIDGE RECTIFIER (First Silicon)
  • GBU404 - 4.0 AMP Glass Passivated Bridge Rectifiers (SeCoS)
  • GBU404 - Single-Phase 4.0A Glass Passivated Bridge Rectifier (SMC)
  • GBU404 - GLASS PASSIVATED BRIDGE RECTIFIER (Zowie)
  • GBU404 - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (UPM)
  • GBU404 - 4.0A Single-Phase Bridge Rectifier (SEP ELECTRONIC)
  • GBU404 - Single Phase 4.0 AMPS. Glass Passivated Bridge Rectifiers (Kingtronics)
  • GBU404 - 4A Miniature Glass Passivated Single-Phase Bridge Rectifiers (CITC)
  • GBU404 - GLASS PASSIVATED BRIDGE RECTIFIERS (LITE-ON)
  • GBU404 - Glass Passivated Bridge Rectifier (Eris)
Other Datasheets by Luguang Electronic
  • GBU401 - Single Phase 4.0AMP.Glass Passivated Bridge Rectifiers
  • GBU402 - Single Phase 4.0AMP.Glass Passivated Bridge Rectifiers
  • GBU403 - Single Phase 4.0AMP.Glass Passivated Bridge Rectifiers
  • GBU405 - Single Phase 4.0AMP.Glass Passivated Bridge Rectifiers
  • GBU406 - Single Phase 4.0AMP.Glass Passivated Bridge Rectifiers
  • GBU407 - Single Phase 4.0AMP.Glass Passivated Bridge Rectifiers
  • GBU10A - Silicon Bridge Rectifiers
  • GBU10B - Silicon Bridge Rectifiers

Full PDF Text Transcription

Click to expand full text
GBU401-GBU407 Single Phase 4.0AMP.Glass Passivated Bridge Rectifiers GBU Features Ideal for printed circuit board Reliable low cost construction Plastic material has Underwriters Laboratory Flammability Classification 94V-0 High case dielectric strength of 1500VRMS Surge overload rating to 150 amperes peak High temperature soldering guaranteed: o 260 C / 10 seconds / .375”, (9.5mm) lead lengths at 5 lbs., (2.3kg) tension Mechanical Data Case: Molded plastic body Weight: 0. 3 ounce, 8.0 grams Mounting torque: 5 in. lbs. Max. Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
