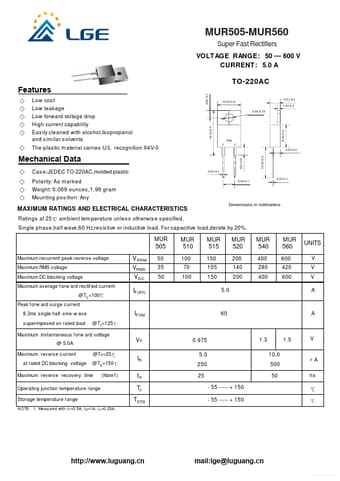

MUR505-MUR560
Super Fast Rectifiers
VOLTAGE RANGE: 50 --- 600 V CURRENT: 5.0 A
2.8± 0.1
Features
Low cos t Low leakage Low forward voltage drop High current capability Eas ily cleaned with alcohol,Is opropanol and s im ilar s olvents The plas tic m aterial carries U/L recognition 94V-0
TO-220A C
10.2± 0.2
¦Õ 3.8± 0.15
4.5± 0.2 1.4± 0.2
19.0± 0.5
PIN 1 2
8.9± 0.2 2.6± 0.2 3.5± 0.3 13.8± 0.5 5.0± 0.1 0.5± 0.1
Mechanical Data
Cas e:JEDEC TO-220AC,molded plastic Polarity: As marked Weight: 0.069 ounces,1.96 gram Mounting pos ition: Any
0.9± 0.1
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 am bient tem perature unles s otherwis e s pecified.
Dimensions in millimeters
Single phas e,half wave,60 Hz,res is tive or inductive load. For capacitive load,derate by 20%.
