IS32FL3202, SMART LED CONTROLLER

IS32FL3202 is a three channel LED controller. Each LED channel supports 6-bit DC (Dot Correction) current adjustment for color setting and 12-bit PWM for smooth LED dimming control. The maximum output current of each LED channel (for R, G, B) is 63mA. All registers in the IS32FL3202 can be accessed .

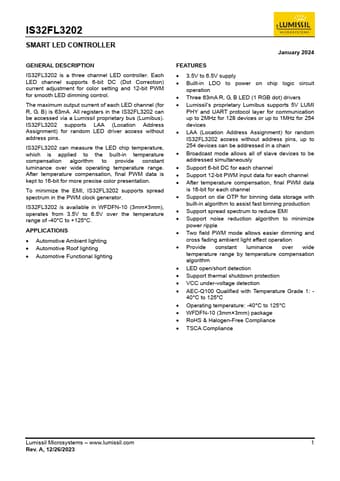

Datasheet Preview Page 1

IS32FL3202-Lumissil.pdf

IS32FL3202 Datasheet Preview — Preview of IS32FL3202 PDF

IS32FL3202 Datasheet Preview Page 2

IS32FL3202 Datasheet Preview Page 3

Datasheet Details

Part number:

IS32FL3202

Manufacturer:

Lumissil

File Size:

0.99 MB

Description:

SMART LED CONTROLLER

IS32FL3202 Features

* 3.5V to 6.5V supply

* Built-in LDO to power on chip logic circuit operation

* Three 63mA R, G, B LED (1 RGB dot) drivers

* Lumissil’s proprietary Lumibus supports 5V LUMI PHY and UART protocol layer for communication up to 2MHz for 128 devices or up to 1MHz for 254
