SB1030CT - 10A Dual Schottky Barrier Rectifier

Download the SB1030CT datasheet PDF. This datasheet also covers the SB1020CT variant, as both devices belong to the same 10a dual schottky barrier rectifier family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (SB1020CT-MAYLOON.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number SB1030CT
Manufacturer MAYLOON
File Size 255.35 KB
Description 10A Dual Schottky Barrier Rectifier
Datasheet download datasheet SB1030CT Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SB1030CT Dual Common Cathode Schottky Rectifiers JGD
SB1030CT 10A SCHOTTKY BARRIERRECTIFIER YS
SB1030CT SCHOTTKY BARRIER RECTIFIER Pan Jit International Inc.
SB1030CT 10A DUAL SCHOTTKY BARRIER RECTIFIER WON-TOP
SB1030CT SCHOTTKY BARRIER RECTIFIER PACELEADER

Other Datasheets by MAYLOON

Part Number Description
SB1030DC 10A Dual Schottky Barrier Rectifier
SB1030F 10A Schottky Barrier Rectifier
SB1030FCT 10A Dual Schottky Barrier Rectifier
SB10100CT 10A Dual Schottky Barrier Rectifier
SB10100DC 10A Dual Schottky Barrier Rectifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

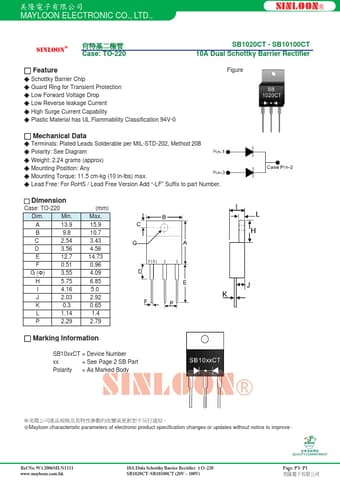

ऍໜႝηԖज़Ϧљ MAYLOON ELECTRONIC CO., LTD., SINLOON® ߕ௽ഗԲᄕጥ Case: TO-220 SB1020CT - SB10100CT 10A Dual Schottky Barrier Rectifier ϭ Feature Ϭ Schottky Barrier Chip Ϭ Guard Ring for Transient Protection Ϭ Low Forward Voltage Drop Ϭ Low Reverse leakage Current Ϭ High Surge Current Capability Ϭ Plastic Material has UL Flammability Classification 94V-0 Figure ϭ Mechanical Data Ϭ Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 Ϭ Polarity: See Diagram Ϭ Weight: 2.24 grams (approx) Ϭ Mounting Position: Any Ϭ Mounting Torque: 11.5 cm-kg (10 in-lbs) max. Ϭ Lead Free: For RoHS / Lead Free Version Add “-LF” Suffix to part Number. ϭ Dimension Case: TO-220 Dim. Min. A 13.9 B 9.8 C 2.54 D 3.56 E 12.7 F G (ĭ) 0.51 3.55 H 5.75 I 4.16 J 2.03 K 0.3 L 1.14 P 2.29 (mm) Max.
