1.5KE24CA - TVS

Download the 1.5KE24CA datasheet PDF. This datasheet also covers the 1.5KE6.8A variant, as both devices belong to the same tvs family and are provided as variant models within a single manufacturer datasheet.

Features

  • Economical Series and Quick Response.
  • Available in Both Unidirectional and Bidirectional Construction.
  • Excellent Clamping Capability.
  • Halogen Free Available Upon Request By Adding Suffix "-HF".
  • Moisture Sensitivity Level 1.
  • Epoxy Meets UL 94 V-0 Flammability Rating.
  • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1.5KE6.8A-MCC.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
1.5KE24CA 1500W TRANSIENT VOLTAGE SUPPRESSOR Won-Top Electronics
1.5KE24CA Transient Voltage Suppressors HITANO
1.5KE24CA 1500W TRANSIENT VOLTAGE SUPPRESSOR Diodes
1.5KE24CA 1500 Watt Transient Voltage Suppressors Fairchild Semiconductor
1.5KE24CA GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR Pan Jit International

Other Datasheets by Micro Commercial Components

Part Number Description
1.5KE24 1500 Watt Transient Voltage Suppressors
1.5KE24A TVS
1.5KE20 1500 Watt Transient Voltage Suppressors
1.5KE200 1500 Watt Transient Voltage Suppressors
1.5KE200A TVS

Full PDF Text Transcription

Click to expand full text

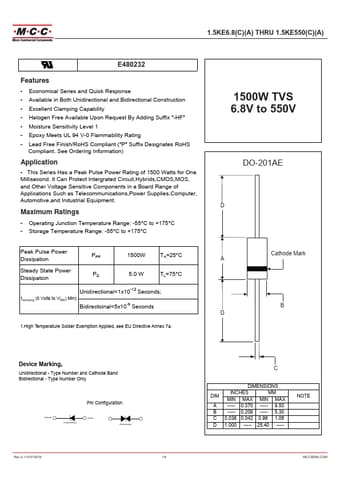

1.5KE6.8(C)(A) THRU 1.5KE550(C)(A) E480232 Features • Economical Series and Quick Response • Available in Both Unidirectional and Bidirectional Construction • Excellent Clamping Capability • Halogen Free Available Upon Request By Adding Suffix "-HF" • Moisture Sensitivity Level 1 • Epoxy Meets UL 94 V-0 Flammability Rating • Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information) Application • This Series Has a Peak Pulse Power Rating of 1500 Watts for One Millisecond. It Can Protect Intergrated Circuit,Hybrids,CMOS,MOS, and Other Voltage Sensitive Components in a Board Range of Applications Such as Telecommunications,Power Supplies,Computer, Automotive,and Industrial Equipment.
