MDD ELECTRONIC

MUR410 Datasheet Preview

MUR410 Datasheet

ULTRA FAST RECTIFIERS

No Preview Available !

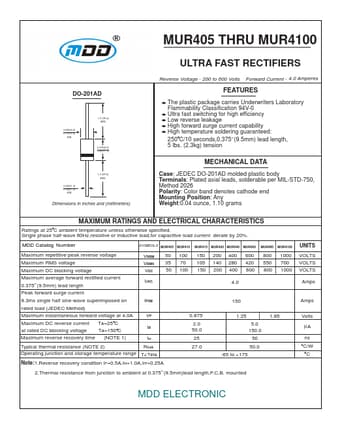

MUR405 THRU MUR4100
DO-201AD
0.220(5.6)
0.197(5.0)
DIA.
1.0 (25.4)
MIN.
0.375(9.5)
0.285(7.2)
0.052(1.3)
0.048(1.2)
DIA.
1.0 (25.4)
MIN.
Dimensions in inches and (millimeters)
ULTRA FAST RECTIFIERS
Reverse Voltage - 200 to 600 Volts Forward Current - 4.0 Amperes
FEATURES
The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Ultra fast switching for high efficiency
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed:
250 C/10 seconds,0.375(9.5mm) lead length,
5 lbs. (2.3kg) tension
MECHANICAL DATA
Case: JEDEC DO-201AD molded plastic body
Terminals: Plated axial leads, solderable per MIL-STD-750,
Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight:0.04 ounce, 1.10 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 C ambient temperature unless otherwise specified.
Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
MDD Catalog Number
SYMBOLS MUR405 MUR410 MUR415 MUR420 MUR440 MUR460 MUR480 MUR4100
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
0.375(9.5mm) lead length
Peak forward surge current
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method)
Maximum instantaneous forward voltage at 4.0A
Maximum DC reverse current TA=25 C
at rated DC blocking voltage TA=150 C
Maximum reverse recovery time (NOTE 1)
VRRM
VRMS
VDC
I(AV)
IFSM
VF
IR
trr
50 100 150 200 400 600 800 1000
35 70 105 140 280 420 550 700
50 100 150 200 400 600 800 1000
4.0
0.875
2.0
50.0
25
150
1.25
5.0
150.0
50
1.85
Typical thermal resistance (NOTE 2)
RθJA
Operating junction and storage temperature range TJ,TSTG
27.0 50.0
-65 to +175
Note:1.Reverse recovery condition IF=0.5A,IR=1.0A,Irr=0.25A
UNITS
VOLTS
VOLTS
VOLTS
Amps
Amps
Volts
µA
ns
C/W
C
2.Thermal resistance from junction to ambient at 0.375(9.5mm)lead length,P.C.B. mounted
MDD ELECTRONIC




MDD ELECTRONIC

MUR410 Datasheet Preview

MUR410 Datasheet

ULTRA FAST RECTIFIERS

No Preview Available !

RATINGS AND CHARACTERISTIC CURVES MUR405 THRU MUR4100
FIG. 1- FORWARD CURRENT DERATING CURVE
5
4
3
2 Single Phase
Half Wave 60Hz
Resistive or
inductive Load
1
0
0 25 50 75 100 125 150 175
AMBIENT TEMPERATURE, C
FIG. 3-TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
20
10 TJ=25 C
PULSE WIDTH=300 µs
1%DUTY CYCLE
MUR405-MUR420
1
0.1 MUR440-MUR4100
0 0.4 0.8 1.2 1.6 1.8
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
FIG. 5-TYPICAL JUNCTION CAPACITANCE
200
100 TJ=25 C
10
FIG. 2-MAXIMUM NON-REPETITIVE PEAK FORWARD
SURGE CURRENT
50
40
30
20
1025
8.3ms SINGLE HALF
(JEDEC Method)
SINE-WAVE
0
1 10
NUMBER OF CYCLES AT 60 Hz
100
FIG. 4-TYPICAL REVERSE CHARACTERISTICS
PERCENT OF PEAK REVERSE VOLTAGE,%
2
0.1
1.0
10 100
REVERSE VOLTAGE,VOLTS
MDD ELECTRONIC
