MUR4100 - ULTRA FAST RECTIFIERS

This page provides the datasheet information for the MUR4100, a member of the MUR405 ULTRA FAST RECTIFIERS family.

Features

  • The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Ultra fast switching for high efficiency Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension 1.0 (25.4) MIN. 0.220(5.6) 0.197(5.0) DIA. 0.375(9.5) 0.285(7.2).

📥 Download Datasheet

Datasheet preview – MUR4100

Datasheet Details

Part number MUR4100
Manufacturer MDD ELECTRONIC
File Size 77.77 KB
Description ULTRA FAST RECTIFIERS
Datasheet download datasheet MUR4100 Datasheet
Additional preview pages of the MUR4100 datasheet.

📁 Similar Datasheet

  • MUR4100 - Glass Passivated High Efficiency Rectifier (MIC)
  • MUR4100 - Super Fast Recovery Rectifier (Micro Commercial Components)
  • MUR4100 - HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER (GOOD ELECTRONIC)
  • MUR4100 - UltraFast Rectifiers (Motorola)
  • MUR4100 - Ultra Fast Recovery Diodes (Kexin)
  • MUR4100 - 4A ULTRA FAST RECTIFIER (Frontier Electronics)
  • MUR4100E - ULTRAFAST RECTIFIERS (Motorola)
  • MUR4100E - SWITCHMODE Power Rectifiers (ON Semiconductor)
  • MUR4100E - (MUR490E / MUR4100E) ULTRAFAST RECTIFIERS (ON Semiconductor)
  • MUR4100E - 4A SCHOTTKY RECTIFIER (DIGITRON SEMICONDUCTORS)
Other Datasheets by MDD ELECTRONIC
  • MUR410 - ULTRA FAST RECTIFIERS
  • MUR415 - ULTRA FAST RECTIFIERS
  • MUR405 - ULTRA FAST RECTIFIERS
  • MUR420 - ULTRA FAST RECTIFIERS
  • MUR480 - ULTRA FAST RECTIFIERS

Full PDF Text Transcription

Click to expand full text

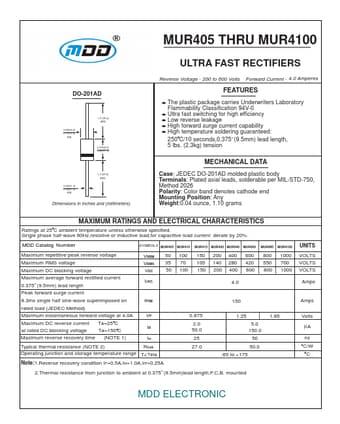

MUR405 THRU MUR4100 ULTRA FAST RECTIFIERS Reverse Voltage - 200 to 600 Volts Forward Current - 4.0 Amperes DO-201AD FEATURES The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Ultra fast switching for high efficiency Low reverse leakage High forward surge current capability High temperature soldering guaranteed: 250 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension 1.0 (25.4) MIN. 0.220(5.6) 0.197(5.0) DIA. 0.375(9.5) 0.285(7.2) MECHANICAL DATA 1.0 (25.4) MIN. 0.052(1.3) 0.048(1.2) DIA. Dimensions in inches and (millimeters) Case: JEDEC DO-201AD molded plastic body Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity: Color band denotes cathode end Mounting Position: Any Weight:0.04 ounce, 1.
Published: |
