GBU4M Datasheet PDF (Single Phase Glass Passivated Bridge Rectifier)

GBU4M - Single Phase Glass Passivated Bridge Rectifier

This page provides the datasheet information for the GBU4M, a member of the GBU4A Single Phase Glass Passivated Bridge Rectifier family.

Description

Max Recurrent Peak Reverse Voltage Max RMS Voltage Max DC Blocking Voltage Max Average Forward Rectified Current Peak Forward Surge Current Operating and Storage Temperature Range Rating for Fusing GBU4A GBU4B GBU4D GBU4G GBU4J GBU4K GBU4M Unit 50 100 200 400 600 800 1000 V

Features

UL recognized under component index, file Number E54124.
High forward surge capability.
Glass passivated chip junction.
High case dielectric strength.
High temperature soldering guaranteed: 260℃/10 seconds Mechanical Data Case: Polarity Terminals: Mounting torque Mounting position: Weight: Transfer molded plastic Polarity symbols marked on case Lead solderable per MIL-STD-750 method 2026 / Thru hole for #6 screw, 5-in-lbs torque max (Note 3) 0.15 ounce, 4.0 gram Max.

Datasheet Details

Part number	GBU4M
Manufacturer	MEI SEMI
File Size	674.75 KB
Description	Single Phase Glass Passivated Bridge Rectifier
Datasheet	GBU4M Datasheet
Additional preview pages of the GBU4M datasheet.

📁 Similar Datasheet

GBU4M - Bridge Rectifier (MCC)

GBU4M - Bridge Rectifiers (Fairchild Semiconductor)

GBU4M - 4.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER (WON-TOP)

GBU4M - GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER (YS)

GBU4M - Glass Passivated Single-Phase Bridge Rectifier (Vishay)

GBU4M - Silicon Bridge Rectifiers (GME)

GBU4M - (GBU4x) Silicon-Bridge Rectifiers (Semikron International)

GBU4M - (GBU4x) SILICON BRIDGE RECTIFIERS (EIC)

GBU4M - Silicon Bridge Rectifier (America Semiconductor)

GBU4M - Glass Passivated Single-Phase Bridge Rectifiers (GOOD-ARK)

Full PDF Text Transcription

Click to expand full text

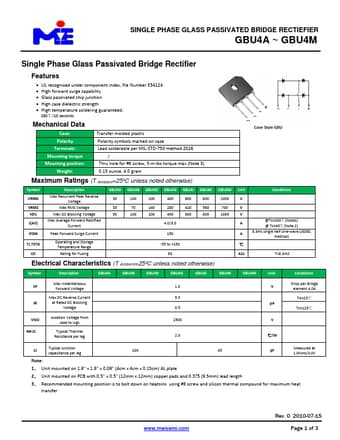

SINGLE PHASE GLASS PASSIVATED BRIDGE RECTIEFIER GBU4A ~ GBU4M Single Phase Glass Passivated Bridge Rectifier Features  UL recognized under component index, file Number E54124  High forward surge capability  Glass passivated chip junction  High case dielectric strength  High temperature soldering guaranteed: 260℃/10 seconds Mechanical Data Case: Polarity Terminals: Mounting torque Mounting position: Weight: Transfer molded plastic Polarity symbols marked on case Lead solderable per MIL-STD-750 method 2026 / Thru hole for #6 screw, 5-in-lbs torque max (Note 3) 0.15 ounce, 4.
