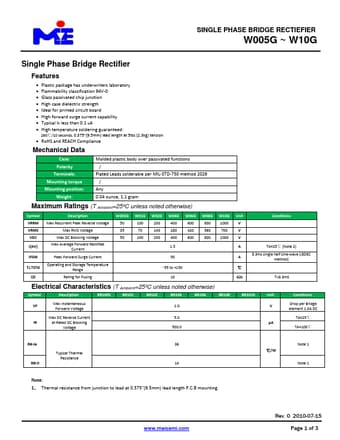

Single Phase Bridge Rectifier

No Preview Available !

SINGLE PHASE BRIDGE RECTIEFIER
W005G ~ W10G
Single Phase Bridge Rectifier
Features
Plastic package has underwriters laboratory
Flammability classification 94V-0
Glass passivated chip junction
High case dielectric strength
Ideal for printed circult board
High forward surge current capability
Typical IR less than 0.1 uA
High temperature soldering guaranteed:
260/10 seconds, 0.375(9.5mm) lead length at 5lbs (2.3kg) tension
RoHS and REACH Compliance
Mechanical Data
Case:
Polarity
Terminals:
Mounting torque
Mounting position:
Weight:
Molded plastic body over passivated functions
/
Plated Leads solderable per MIL-STD-750 method 2026
/
Any
0.04 ounce, 1.1 gram
Maximum Ratings (T Ambient=25ºC unless noted otherwise)
Symbol
VRRM
VRMS
VDC
I(AV)
IFSM
TJ,TSTG
I2t
Description
Max Recurrent Peak Reverse Voltage
Max RMS Voltage
Max DC Blocking Voltage
Max Average Forward Rectified
Current
Peak Forward Surge Current
Operating and Storage Temperature
Range
Rating for Fusing
W005G
50
35
50
W01G
100
70
100
W02G
200
140
200
W04G
400
280
400
W06G
600
420
600
1.5
50
-55 to +150
10
W08G
800
560
800
W10G
1000
700
1000
Unit
V
V
V
A
A
A2s
Conditions
TA=25(Note 2)
8.3ms single half sine-wave (JEDEC
method)
T<8.3mS
Electrical Characteristics (T Ambient=25ºC unless noted otherwise)
Symbol
Description
BR1005
BR101
BR102
BR104
BR106
BR108
BR1010
Unit
Conditions
VF
Max Instantaneous
Forward Voltage
1.0
V
Drop per Bridge
element 1.0A DC
Max DC Reverse Current
IR at Rated DC Blocking
Voltage
5.0
500.0
TA=25
μA
TA=100
Rθ-Ja
Rθ-JI
Typical Thermal
Resistance
36 Note 1
/W
14 Note 1
Note:
1Thermal resistance from junction to lead at 0.375(9.5mm) lead length P.C.B mounting.
www.meisemi.com
Rev. 0 2010-07-15
Page 1 of 3
