15KP64CA - TVS

Download the 15KP64CA datasheet PDF (15KP17A included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for tvs.

Features

  • Plastic package has Underwriters Laboratory.
  • Flammability Classification 94V-0.
  • Glass passivated junction.
  • 15000W Peak Pulse Power capability on 10/1000 µs waveform.
  • Excellent clamping capability.
  • Repetition rate (duty cycle):0.05%.
  • Low incremental surge resistance.
  • Fast response time: typically less than 1.0 ps from 0 volts to BV.
  • Typical Id less than 1µA above 10V.
  • High temperature soldering guaranteed: 265° C/10 seconds/.375", (9.5mm) lead le.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (15KP17A-MIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 15KP64CA
Manufacturer MIC
File Size 351.68 KB
Description TVS
Datasheet download datasheet 15KP64CA Datasheet

📁 Similar Datasheet

  • 15KP64CA - TVS (MCC)
  • 15KP64CA - 15000W TRANSIENT VOLTAGE SUPPRESSOR (WON-TOP)
  • 15KP64CA - 15000 Watts Transient Voltage Suppressors (JGD)
  • 15KP64CA - AXIAL LEAD TRANSIENT VOLTAGE SUPPRESSOR DIODE (SunMate)
  • 15KP64CA - TRANSIENT VOLTAGE SUPPRESSORS (EIC)
  • 15KP64CA - 15000 Watt Axial Leaded Transient Voltage Suppressor (Littelfuse)
  • 15KP64CA - 15000W Axial Leaded Transient Voltage Suppressors (SEMITECH)
  • 15KP64CA - TRANSIENT VOLTAGE SUPPRESSORS (LITE-ON)
  • 15KP64CA - 15000W Transient Voltage Suppressor (HUAAN)
  • 15KP64C - AXIAL LEAD TRANSIENT VOLTAGE SUPPRESSOR DIODE (SunMate)
Other Datasheets by MIC

Full PDF Text Transcription

Click to expand full text

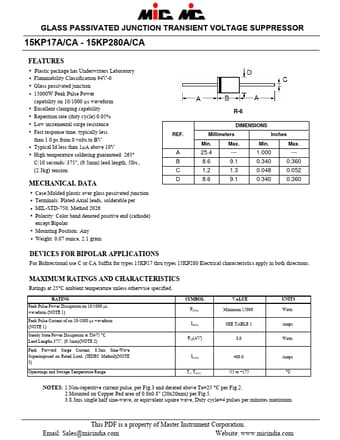

GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR 15KP17A/CA - 15KP280A/CA FEATURES ▪ Plastic package has Underwriters Laboratory ▪ Flammability Classification 94V-0 ▪ Glass passivated junction ▪ 15000W Peak Pulse Power capability on 10/1000 µs waveform ▪ Excellent clamping capability ▪ Repetition rate (duty cycle):0.05% ▪ Low incremental surge resistance ▪ Fast response time: typically less than 1.0 ps from 0 volts to BV ▪ Typical Id less than 1µA above 10V ▪ High temperature soldering guaranteed: 265° C/10 seconds/.375", (9.5mm) lead length, 5lbs., (2.
