1N5394G - AXIAL SILASTIC GUARD JUNCTION STANDARD RECTIFIER

This page provides the datasheet information for the 1N5394G, a member of the 1N5391G AXIAL SILASTIC GUARD JUNCTION STANDARD RECTIFIER family.

Datasheet Summary

Features

  • Glass passivated chip junction.
  • Low forward voltage drop.
  • Low reverse leakage.
  • High forward surge current capability.
  • High temperature soldering guaranteed 260 /10 secods,0.375”(9.5mm)lead length at 5 lbs(2.3kg) tension.

📥 Download Datasheet

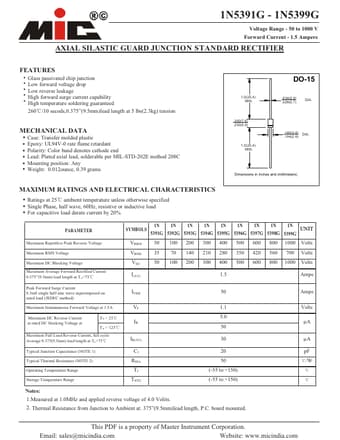

Datasheet preview – 1N5394G

Datasheet Details

Part number 1N5394G
Manufacturer MIC
File Size 78.20 KB
Description AXIAL SILASTIC GUARD JUNCTION STANDARD RECTIFIER
Datasheet download datasheet 1N5394G Datasheet
