BR508 - SINGLE PHASE BRIDGE RECTIFIER

Download the BR508 datasheet PDF. This datasheet also covers the BR5005 variant, as both devices belong to the same single phase bridge rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • Low cost.
  • This series is UL recognized under component index, file number E127707.
  • High forward surge current capability.
  • Integrally molded heatsink provide very low thermal resistance.
  • High isolation voltage from case to leads.
  • High temperature soldering guaranteed:260 oC/10 second, at 5 lbs. (2.3kg) tension.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (BR5005-MIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number BR508
Manufacturer MIC
File Size 456.07 KB
Description SINGLE PHASE BRIDGE RECTIFIER
Datasheet download datasheet BR508 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BR508 TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER Dc Components
BR508L SINGLE-PHASE BRIDGE RECTIFIER SPS
BR508L-G Silicon Bridge Rectifiers Comchip
BR508W TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER Dc Components
BR5000 Bridge Rectifier Formosa MS

Other Datasheets by MIC

Part Number Description
BR5005 SINGLE PHASE BRIDGE RECTIFIER
BR501 SINGLE PHASE BRIDGE RECTIFIER
BR5010 SINGLE PHASE BRIDGE RECTIFIER
BR502 SINGLE PHASE BRIDGE RECTIFIER
BR504 SINGLE PHASE BRIDGE RECTIFIER

Full PDF Text Transcription

Click to expand full text

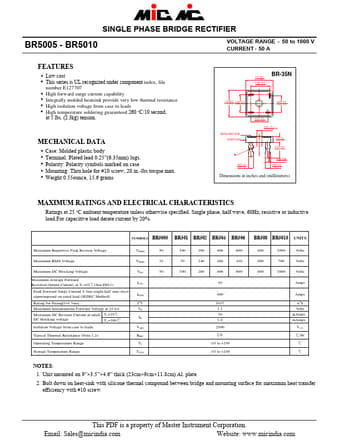

SINGLE PHASE BRIDGE RECTIFIER BR5005 - BR5010 VOLTAGE RANGE - 50 to 1000 V CURRENT - 50 A FEATURES ▪ Low cost ▪ This series is UL recognized under component index, file number E127707 ▪ High forward surge current capability ▪ Integrally molded heatsink provide very low thermal resistance ▪ High isolation voltage from case to leads ▪ High temperature soldering guaranteed:260 oC/10 second, at 5 lbs. (2.3kg) tension. MECHANICAL DATA ▪ Case: Molded plastic body ▪ Terminal: Plated lead 0.25”(6.35mm) lugs. ▪ Polarity: Polarity symbols marked on case ▪ Mounting: Thru hole for #10 screw, 20 in.-lbs torque max. ▪ Weight:0.55ounce, 15.6 grams 1.13( 28.8) 1.11( 28.2) 0.666( 16.9) 0.626( 15.9) BR-35N AC 1.13( 28.8) 0.728( 18.5) 1.11( 28.2) 0.688( 17.5) - + 0.666( 16.9) 0.626( 15.
