BR810 - SINGLE-PHASE BRIDGE RECTIFIER

This page provides the datasheet information for the BR810, a member of the BR805 SINGLE-PHASE BRIDGE RECTIFIER family.

Datasheet Summary

Features

  • l Low cost l This series is UL recognized under component index, file number E127707 l High forward surge current capability l Ideal for printed circuit board l High isolation voltage from case to leads l High temperature soldering guaranteed: 260 oC/10 second, at 5 lbs. (2.3kg) tension. 0.52( 13.2) 0.48( 12.2) 0.07( 1.8) x45 + ° AC 0.16( 0.14( 4.1) 3.6) DIA AC 0.52( 13.2) 0.48( 12.2) 0.77( 19.6) 0.73( 18.5) - 0.77( 19.6) 0.73( 18.5).

📥 Download Datasheet

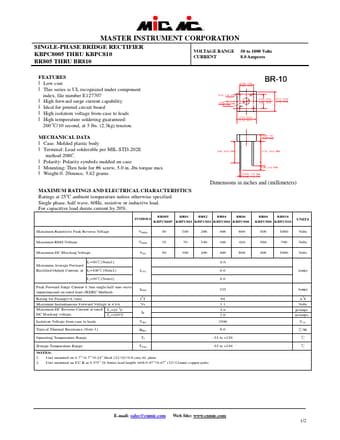

Datasheet preview – BR810

Datasheet Details

Part number BR810
Manufacturer MIC
File Size 110.26 KB
Description SINGLE-PHASE BRIDGE RECTIFIER
Datasheet download datasheet BR810 Datasheet
Additional preview pages of the BR810 datasheet.

📁 Similar Datasheet

  • BR810 - SINGLE-PHASE SILICON BRIDGE (GOOD-ARK Electronics)
  • BR810 - SINGLE PHASE 8.0 AMP BRIDGE RECTIFIERS (Formosa MS)
  • BR810 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Rectron Semiconductor)
  • BR810 - TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER (Dc Components)
  • BR810 - SILICON BRIDGE RECTIFIERS (EIC discrete Semiconductors)
  • BR810 - Silicon Bridge Rectifiers (LGE)
  • BR810 - Single Phase Silicon Bridge Rectifier (GeneSiC)
  • BR810 - Silicon Bridge Rectifier (America Semiconductor)
  • BR810 - SILICON BRIDGE RECTIFIERS (GOOD-ARK)
  • BR810DL - 2 Amp Single Phase Bridge Rectifier 50 to 1000 Volts (Micro Commercial Components)
Other Datasheets by MIC
  • BR81 - SINGLE-PHASE BRIDGE RECTIFIER
  • BR805 - SINGLE-PHASE BRIDGE RECTIFIER
  • BR82 - SINGLE-PHASE BRIDGE RECTIFIER
  • BR84 - SINGLE-PHASE BRIDGE RECTIFIER
  • BR86 - SINGLE-PHASE BRIDGE RECTIFIER
  • BR88 - SINGLE-PHASE BRIDGE RECTIFIER

Full PDF Text Transcription

Click to expand full text
MASTER INSTRUMENT CORPORATION SINGLE-PHASE BRIDGE RECTIFIER KBPC8005 THRU KBPC810 BR805 THRU BR810 VOLTAGE RANGE 50 to 1000 Volts CURRENT 8.0 Amperes FEATURES l Low cost l This series is UL recognized under component index, file number E127707 l High forward surge current capability l Ideal for printed circuit board l High isolation voltage from case to leads l High temperature soldering guaranteed: 260 oC/10 second, at 5 lbs. (2.3kg) tension. 0.52( 13.2) 0.48( 12.2) 0.07( 1.8) x45 + ° AC 0.16( 0.14( 4.1) 3.6) DIA AC 0.52( 13.2) 0.48( 12.2) 0.77( 19.6) 0.73( 18.5) - 0.77( 19.6) 0.73( 18.5) MECHANICAL DATA l Case: Molded plastic body l Terminal: Lead solderable per MIL-STD-202E method 208C. l Polarity: Polarity symbols molded on case l Mounting: Thru hole for #6 screw, 5.
