FR153
FR153 is FAST RECOVER RECTIFIER manufactured by MIC.
- Part of the FR151 comparator family.
- Part of the FR151 comparator family.

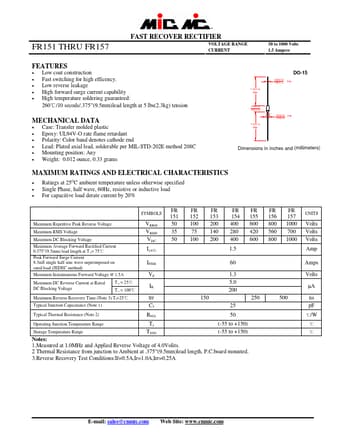

FR151 THRU FR157
FAST RECOVER RECTIFIER
VOLTAGE RANGE CURRENT
50 to 1000 Volts 1.5 Ampere
Features
- Low coat construction
- Fast switching for high efficency.
- Low reverse leakage
- High forward surge current capability
- High temperature soldering guaranteed:
260℃/10 secods/.375”(9.5mm)lead length at 5 lbs(2.3kg) tension
MECHANICAL DATA
- Case: Transfer molded plastic
- Epoxy: UL94V-O rate flame retardant
- Polarity: Color band denotes cathode end
- Lead: Plated axial lead, solderable per MIL-STD-202E method 208C
- Mounting position: Any
- Weight: 0.012 ounce, 0.33 grams
1.0(25.4) MIN.
.300(7.6) .230(5.8)
1.0(25.4) MIN.
DO-15
.034(0.9) .028(0.7) DIA.
.140(3.6) DIA. .104(2.6)
Dimensi...
