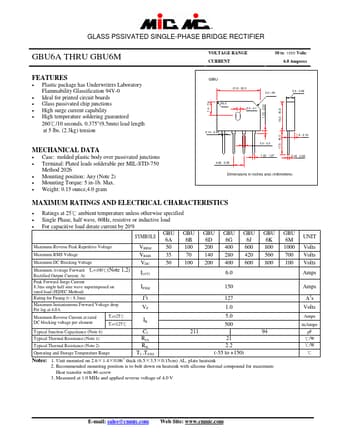

GLASS PSSIVATED SINGLE-PHASE BRIDGE RECTIFIER
GBU6A THRU GBU6M
VOLTAGE RANGE CURRENT
50 to 1000 Volts 6.0 Amperes
FEATURES
• Plastic package has Underwriters Laboratory Flammability Glassification 94V-0
• Ideal for printed circuit boards • Glass passivated chip junctions • High surge current capability • High temperature soldering guaranteed
260℃/10 seconds, 0.375”(9.5mm) lead length at 5 lbs. (2.3kg) tension
MECHANICAL DATA
• Case: molded plastic body over passivated junctions • Terminal: Plated leads solderable per MIL-STD-750
Method 2026 • Mounting position: Any (Note 2) • Mounting Torque: 5 in-1b. Max. • Weight: 0.15 ounce,4.0 gram
GBU
21.8 - 22.3
3.2×45 O
R0.5
3.5 - 4.1
3.3 - 3.56
18.3 - 18.8
1.52 - 2.03
7.4 - 7.9
17.5 - 18.0
2.16 - 2.54
2.0 - 2.2
1.9 - 2.16
4.
