MM1851E - Low-Saturation voltage 1.5A LDO

Download the MM1851E datasheet PDF. This datasheet also covers the MM1850K variant, as both devices belong to the same low-saturation voltage 1.5a ldo family and are provided as variant models within a single manufacturer datasheet.

Features

  • 1. Supply Current 2. Supply Current 3. Output Voltage Range 4. Output Voltage accuracy 5. Dropout Voltage 6. Line Regulation 7. Load Regulation 8. Ripple rejection 9. Thermal shutdown 10. Input & Output Capacitor 1mA typ. (No-Load) 1µA max. (OFF) 0.9V~5.0V ±2% 0.26V typ. (IO=1.5A) 10mV typ. (VO+0.5V~VO+1.5V) 19mV typ. (IO=0~1.5A) 65dB typ. (f=1kHz) 1µF Package TO-252-5A HSOP-8A.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MM1850K-MITSUMI.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MM1851E
Manufacturer MITSUMI
File Size 103.92 KB
Description Low-Saturation voltage 1.5A LDO
Datasheet download datasheet MM1851E Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MM18 (MM17 - MM106) Surface Mount Schottky Diodes Weitron Technology
MM1803 NPN silicon annular transistors Motorola
MM1-B-34-615-3-3CB-B-C Miniature hydraulic/magnetic circuit breakers Carling Technologies
MM1001 High Power RF LDMOS FET Innogration
MM100F20B FRED MacMic

Other Datasheets by MITSUMI

Part Number Description
MM1851A Low-Saturation voltage 1.5A LDO
MM1851B Low-Saturation voltage 1.5A LDO
MM1851C Low-Saturation voltage 1.5A LDO
MM1851D Low-Saturation voltage 1.5A LDO
MM1851F Low-Saturation voltage 1.5A LDO

Full PDF Text Transcription

Click to expand full text

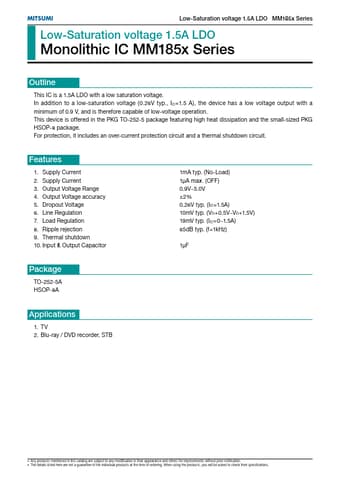

MITSUMI Low-Saturation voltage 1.5A LDO MM185x Series Low-Saturation voltage 1.5A LDO Monolithic IC MM185x Series Outline This IC is a 1.5A LDO with a low saturation voltage. In addition to a low-saturation voltage (0.26V typ., IO=1.5 A), the device has a low voltage output with a minimum of 0.9 V, and is therefore capable of low-voltage operation. This device is offered in the PKG TO-252-5 package featuring high heat dissipation and the small-sized PKG HSOP-8 package. For protection, it includes an over-current protection circuit and a thermal shutdown circuit. Features 1. Supply Current 2. Supply Current 3. Output Voltage Range 4. Output Voltage accuracy 5. Dropout Voltage 6. Line Regulation 7. Load Regulation 8. Ripple rejection 9. Thermal shutdown 10.
