14HK2405N - STEPPING MOTOR

Download the 14HK2405N datasheet PDF (14HK0405N included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for stepping motor.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (14HK0405N-MOONS.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 14HK2405N
Manufacturer MOONS
File Size 651.80 KB
Description STEPPING MOTOR
Datasheet download datasheet 14HK2405N Datasheet

📁 Similar Datasheet

  • 14H2A2405 - 2 Phase Hybrid Stepper Motor (MotionKing)
  • 14H2A2408 - 2 Phase Hybrid Stepper Motor (MotionKing)
  • 14H2A2604 - 2 Phase Hybrid Stepper Motor (MotionKing)
  • 14H2A3404 - 2 Phase Hybrid Stepper Motor (MotionKing)
  • 14H2A3408 - 2 Phase Hybrid Stepper Motor (MotionKing)
  • 14H2A3604 - 2 Phase Hybrid Stepper Motor (MotionKing)
  • 14H2A5415 - 2 Phase Hybrid Stepper Motor (MotionKing)
  • 14H2A9404 - 2 Phase Hybrid Stepper Motor (MotionKing)
  • 14H2K0404 - 2 Phase Hybrid Stepper Motor (MotionKing)
  • 14H2K2404 - 2 Phase Hybrid Stepper Motor (MotionKing)
Other Datasheets by MOONS

Full PDF Text Transcription

Click to expand full text

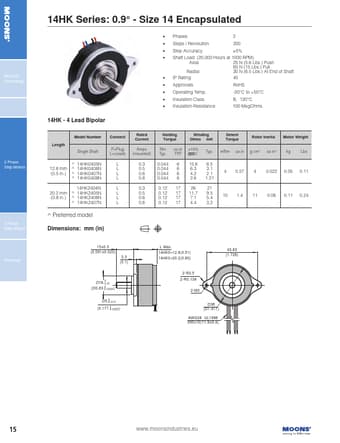

MOONS’ Technology 2 Phase Step Motors 3 Phase Step Motors Technical 14HK Series: 0.9° - Size 14 Encapsulated • Phases 2 • Steps / Revolution 200 • Step Accuracy ±5% • Shaft Load (20,000 Hours at 1000 RPM) Axial 25 N (5.6 Lbs.) Push 65 N (15 Lbs.) Pull Radial 30 N (6.5 Lbs.) At End of Shaft • IP Rating 40 • Approvals RoHS • Operating Temp. -20°C to +50°C • Insulation Class B, 130°C • Insulation Resistance 100 MegOhms 14HK - 4 Lead Bipolar Length Model Number Single Shaft 12.8 mm (0.5 in.) ^ 14HK0405N ^ 14HK0406N ^ 14HK0407N ^ 14HK0408N 20.2 mm (0.8 in.
