GBU8A - 8.0A GLASS PASSIVATED BRIDGE RECTIFIER

Features

  • Glass Passivated Die Construction Low Forward Voltage Drop High Current Capability High Reliability High Surge Current Capability.

📥 Download Datasheet

Datasheet preview – GBU8A

Datasheet Details

Part number GBU8A
Manufacturer MOSPEC
File Size 71.99 KB
Description 8.0A GLASS PASSIVATED BRIDGE RECTIFIER
Datasheet download datasheet GBU8A Datasheet
Additional preview pages of the GBU8A datasheet.

📁 Similar Datasheet

  • GBU8A - RECTIFIER SPECIALISTS (DC COMPONENTS)
  • GBU8A - SILICON BRIDGE RECTIFIERS (Bruckewell)
  • GBU8A - Bridge Rectifiers (Fairchild Semiconductor)
  • GBU8A - Silicon Bridge Rectifiers (GME)
  • GBU8A - 8.0A GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER (WON-TOP)
  • GBU8A - Single Phase Glass Passivated Bridge Rectifier (MEI SEMI)
  • GBU8A - Glass Passivated Single Phase Bridge Rectifiers (JGD)
  • GBU8A - GLASS PASSIVATED SINGLE PHASE BRIDGE RECTIFIER (MIC)
  • GBU8A - Glass Passivated Single-Phase Bridge Rectifier (Vishay)
  • GBU8A - Silicon Bridge Rectifier (America Semiconductor)
Other Datasheets by MOSPEC
  • GBU8B - 8.0A GLASS PASSIVATED BRIDGE RECTIFIER
  • GBU8D - 8.0A GLASS PASSIVATED BRIDGE RECTIFIER
  • GBU8G - 8.0A GLASS PASSIVATED BRIDGE RECTIFIER
  • GBU8J - 8.0A GLASS PASSIVATED BRIDGE RECTIFIER
  • GBU8K - 8.0A GLASS PASSIVATED BRIDGE RECTIFIER
  • GBU10A - 10A GLASS PASSIVATED BRIDGE RECTIFIER
  • GBU10B - 10A GLASS PASSIVATED BRIDGE RECTIFIER
  • GBU10D - 10A GLASS PASSIVATED BRIDGE RECTIFIER

Full PDF Text Transcription

Click to expand full text

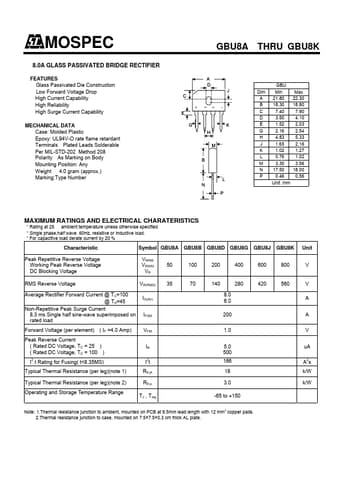

MOSPEC 8.0A GLASS PASSIVATED BRIDGE RECTIFIER FEATURES Glass Passivated Die Construction Low Forward Voltage Drop High Current Capability High Reliability High Surge Current Capability MECHANICAL DATA Case: Molded Plastic Epoxy: UL94V-O rate flame retardant Terminals Plated Leads Solderable Per MIL-STD-202 Method 208 Polarity As Marking on Body Mounting Position: Any Weight 4.0 gram (approx.) Marking:Type Number GBU8A THRU GBU8K GBU Dim Min Max A 21.80 22.30 B 18.30 18.80 C 7.40 7.90 D 3.50 4.10 E 1.52 2.03 G 2.16 2.54 H 4.83 5.33 J 1.65 2.16 K 1.02 1.27 L 0.76 1.02 M 3.30 3.56 N 17.50 18.00 P 0.46 0.56 Unit :mm MAXIMUM RATINGS AND ELECTRICAL CHARATERISTICS * Rating at 25 ambient temperature unless otherwise specified * Single phase,half wave.
