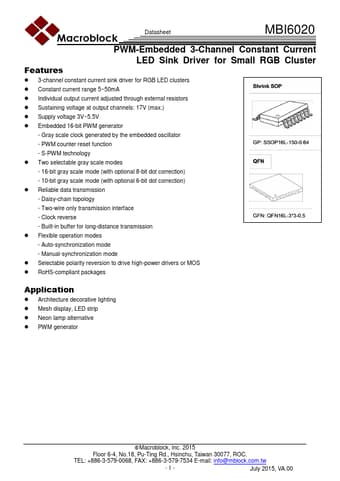

MBI6020 Datasheet (PWM-Embedded 3-Channel Constant Current LED Sink Driver)

Part: MBI6020
Manufacturer: Macroblock
Size: 914.39 KB

MBI6020 Key Features

3-channel constant current sink driver for RGB LED clusters
Constant current range 5~50mA
Individual output current adjusted through external resistors
Sustaining voltage at output channels: 17V (max.)
Supply voltage 3V~5.5V
Embedded 16-bit PWM generator
Gray scale clock generated by the embedded oscillator
PWM counter reset function
S-PWM technology
Two selectable gray scale modes

Related Macroblock Datasheets

Part Number	Description
MBI6021	Built-in PWM 3-channel constant current LED driver
MBI6023	PWM-Embedded 3x4-Channel Constant-Current Sink Driver
MBI6024	PWM-Embedded 3x4-Channel Constant-Current Sink Driver
MBI6001	TRANSFORMERLESS AC / DC CONSTANT CURRENT DRIVER
MBI6010	3-Channel Driver

MBI6020 Description

LED Driver for Small RGB Cluster MBI6020 is a 3-channel, constant current, PWM-embedded LED sink driver for small RGB LED cluster. MBI6020 provides constant current ranging from 5mA to 50mA for each output channel and three output channels are adjustable with three corresponding external resistors. Besides, MBI6020 can support both 3.3V and 5V power systems and sustain 17V at output channels.
