MPGB1N300U60 - 600V FRD Module

Description

Ultra-FRD module devices are optimized to reduce losses and EMI/RFI in high frequency power conditioning electrical systems.

These diode modules are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses.

Features

  • Repetitive Reverse Voltage : VRRM= 600V.
  • Low Forward Voltage : VF(typ. ) = 1.55V.
  • Average Forward Current : IF(Av. )=300A @TC=100℃.
  • Ultra-Fast Reverse Recovery Time : trr(typ. ) =50ns.
  • Extensive Characterization of Recovery Parameters.
  • Reduced EMI and RFI.
  • Isolation Type Package.

📥 Download Datasheet

Datasheet Details

Part number MPGB1N300U60
Manufacturer MagnaChip
File Size 595.80 KB
Description 600V FRD Module
Datasheet download datasheet MPGB1N300U60 Datasheet

📁 Similar Datasheet

  • MPGB51TA - ULTRA HIGH BRIGHTNESS PURE-GREEN LED LAMP (Micro Electronics)
  • MPG06A - MINIATURE GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER (General Semiconductor)
  • MPG06A - Miniature Glass Passivated Junction Plastic Rectifier (Vishay)
  • MPG06A - MINIATURE GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER (TAYCHIPST)
  • MPG06A - GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER DIODES (SUNMATE)
  • MPG06B - MINIATURE GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER (General Semiconductor)
  • MPG06B - Miniature Glass Passivated Junction Plastic Rectifier (Vishay)
  • MPG06B - MINIATURE GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER (TAYCHIPST)
  • MPG06B - GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER DIODES (SUNMATE)
  • MPG06D - MINIATURE GLASS PASSIVATED JUNCTION PLASTIC RECTIFIER (General Semiconductor)
Other Datasheets by MagnaChip

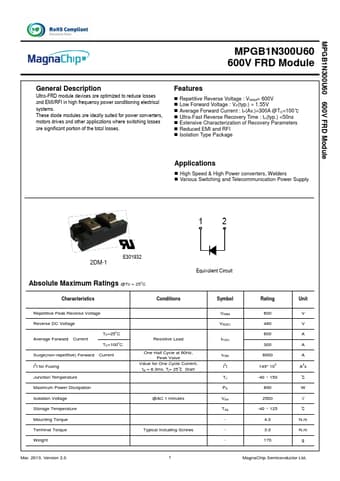

Full PDF Text Transcription

Click to expand full text
MPGB1N300U60 600V FRD Module MPGB1N300U60 600V FRD Module General Description Ultra-FRD module devices are optimized to reduce losses and EMI/RFI in high frequency power conditioning electrical systems. These diode modules are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses. Features  Repetitive Reverse Voltage : VRRM= 600V  Low Forward Voltage : VF(typ.) = 1.55V  Average Forward Current : IF(Av.)=300A @TC=100℃  Ultra-Fast Reverse Recovery Time : trr(typ.
