ME4435-G - P-Channel 30-V (D-S) MOSFET

Description

The ME4435 is the P-Channel logic enhancement mode power field effect transistors are produced using high cell density , DMOS trench technology.

This high density process is especially tailored to minimize on-state resistance.

Features

  • RDS(ON)≦20mΩ@VGS=-10V.
  • RDS(ON)≦35mΩ@VGS=-4.5V.
  • Super high density cell design for extremely low RDS(ON).
  • Exceptional on-resistance and maximum DC current capability.

📥 Download Datasheet

Datasheet Details

Part number ME4435-G
Manufacturer Matsuki
File Size 732.75 KB
Description P-Channel 30-V (D-S) MOSFET
Datasheet download datasheet ME4435-G Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ME4435 P-Channel MOSFET VBsemi
ME4425 P-Channel 30-V (D-S) MOSFET Matsuki Electric
ME4425-G P-Channel 30-V (D-S) MOSFET Matsuki Electric
ME4-H2 Hydrogen Gas Sensor Winsen
ME4-NH3 Ammonia Gas Sensor Winsen

Other Datasheets by Matsuki

Part Number Description
ME4435 P-Channel 30-V (D-S) MOSFET
ME4436 N-Channel 60V (D-S) MOSFET
ME4410 N-Channel 30-V (D-S) MOSFET
ME4410A N-Channel 30-V (D-S) MOSFET
ME4410B N-Channel 30-V (D-S) MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

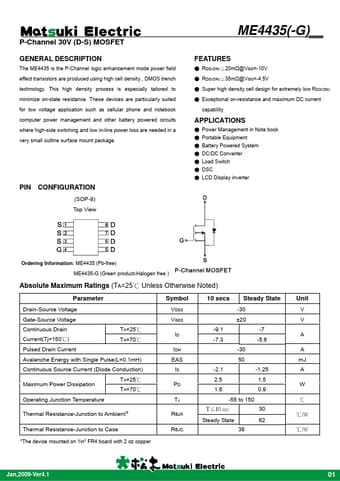

www.DataSheet.co.kr ME4435(-G) P-Channel 30V (D-S) MOSFET GENERAL DESCRIPTION The ME4435 is the P-Channel logic enhancement mode power field effect transistors are produced using high cell density , DMOS trench technology. This high density process is especially tailored to minimize on-state resistance. These devices are particularly suited for low voltage application such as cellular phone and notebook computer power management and other battery powered circuits where high-side switching and low in-line power loss are needed in a very small outline surface mount package. FEATURES ● RDS(ON)≦20mΩ@VGS=-10V ● RDS(ON)≦35mΩ@VGS=-4.
