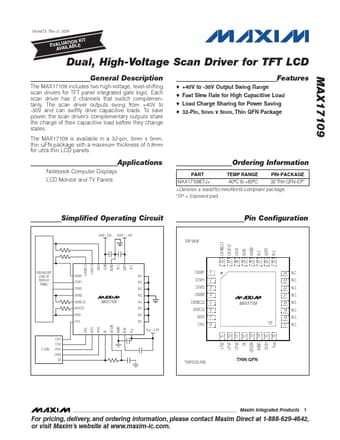

19-4473; Rev 0; 2/09
EVAALVUAAILTAIOBNLEKIT
Dual, High-Voltage Scan Driver for TFT LCD
General Description
The MAX17109 includes two high-voltage, level-shifting
scan drivers for TFT panel integrated gate logic. Each
scan driver has 2 channels that switch complemen-
tarily. The scan driver outputs swing from +40V to
-30V and can swiftly drive capacitive loads. To save
power, the scan driver’s complementary outputs share
the charge of their capacitive load before they change
states.
The MAX17109 is available in a 32-pin, 5mm x 5mm,
thin QFN package with a maximum thickness of 0.8mm
for ultra-thin LCD panels.
Applications
Notebook Computer Displays
LCD Monitor and TV Panels
Features
+40V to -30V Output Swing Range
Fast Slew Rate for High Capacitive Load
Load Charge Sharing for Power Saving
32-Pin, 5mm x 5mm, Thin QFN Package
Ordering Information
PART
TEMP RANGE
PIN-PACKAGE
MAX17109ETJ+
-40C to +85C
32 Thin QFN-EP*
+Denotes a lead(Pb)-free/RoHS-compliant package.
*EP = Exposed pad.
Simplified Operating Circuit
GON = 25V GOFF = -14V
TOP VIEW
Pin Configuration
EQUIVALENT
LOAD OF
DISPLAY
PANEL
CKVB1
STVP1
STVP2
CKVB2
CKVBCS2
CKVCS2
CKV2
STV1
T-CON
STV1
STV2
CPV1
CPV2
OE
MAX17109
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
VDD = 3.3V
CKVB1
STVP1
STVP2
CKVB2
CKVBCS2
CKVCS2
CKV2
STV1
1
2
3
4
5
6
7
8
+
24 N.C.
23 N.C.
22 N.C.
21 N.C.
MAX17109
20 N.C.
19 N.C.
18 N.C.
*EP 17 N.C.
*EXPOSED PAD.
THIN QFN
________________________________________________________________ Maxim Integrated Products   1
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim’s website at www.maxim-ic.com.


Maxim Integrated Semiconductor Electronic Components Datasheet

MAX17109 Datasheet

High-Voltage Scan Driver

No Preview Available !

Dual, High-Voltage Scan Driver for TFT LCD
ABSOLUTE MAXIMUM RATINGS
VDD to AGND............................................................ -0.3V to +6V
OECON, CPV1, CPV2, OE, STV1, STV2 to AGND... -0.3V to +6V
DISH to AGND.............................................-6V to (VVDD + 0.3V)
GON to AGND........................................................ -0.3V to +45V
GOFF to AGND...................................................... -35V to + 0.3V
GON to GOFF.......................................................................+70V
CKV1, CKV2, CKVB1,
CKVB2 to GOFF................................... -0.3V to (VGON + 0.3V)
STVP1, STVP2 to GOFF.........................................(VGON + 0.3V)
CKVCS1, CKVCS2 to GOFF.................... -0.3V to (VGON + 0.3V)
CKVBCS1, CKVBCS2 to GOFF............... -0.3V to (VGON + 0.3V)
Continuous Power Dissipation (TA = +70°C)
32-Pin, 5mm x 5mm Thin QFN
(derate 34.5mW/°C above +70°C)........................... 2758.6mW
Operating Temperature Range............................ -40°C to +85°C
Junction Temperature.......................................................+150°C
Storage Temperature Range.............................. -65°C to +150°C
Lead Temperature (soldering, 10s)..................................+300°C
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional
operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect device reliability.
ELECTRICAL CHARACTERISTICS
(VDD = +3.3V, VGON = 25V, VGOFF = -14V, STV1 = STV2 = CPV1 = CPV2 = OE = OECON = AGND, TA = 0°C to +85°C, unless other-
wise noted. Typical values are at TA = +25°C.)
PARAMETER
CONDITIONS
VDD Input-Voltage Range
VDD Quiescent Current
VDD Undervoltage Lockout
Thermal Shutdown
VVDD rising, typ hysteresis = 50mV
Rising edge, hysteresis = 15°C
HIGH-VOLTAGE SCAN DRIVER
GON Input-Voltage Range
GOFF Input-Voltage Range
GON-to-GOFF Input-Voltage Range
GON UVLO
GON Supply Current
VGON rising
VGON falling
GOFF Supply Current
CKV Output Impedance Low
CKV1, CKVB1, CKV2, CKVB2; -20mA output current
CKV Output Impedance High
CKV1, CKVB1, CKV2, CKVB2; +20mA output current
STV Output Impedance Low
STVP1, STVP2; -20mA output current
STV Output Impedance High
STVP1, STVP2; +20mA output current
Driver Output Three-State Current
CKV1, CKVB1, CKVCS1, CKVBCS1, STVP1, CKV2,
CKVB2, CKVCS2, CKVBCS2, STVP2, TA = +25°C
Charge-Sharing Switch Resistance CKVCS_ to CKVBCS_ at 10mA
DISH Switch Resistance
GOFF = -5V, DISH = -3V
SCAN DRIVER PROPAGATION DELAYS (Note 1)
OE Rising Edge to CKV/CKVB
Rising Edge
STV = 0
OE Rising Edge to CKV/CKVB
Falling Edge
STV = 0
CPV_ Rising Edge to CKVCS_/
CKVBCS_ Rising Edge
STV = 0
CPV_ Rising Edge to CKVCS_/
CKVBCS_ Falling Edge
STV = 0
MIN TYP MAX UNITS
2.2 3.6 V
160 300
µA
1.9 2.15
V
+160
°C
13 40
-30 -3
65
12.2 13
10 11
300 500
200 350
6 12
8 15
25 50
35 70
-1 1
50 100
200 400
V
V
V
V
µA
µA




µA


100 300
100 300
50 120
50 120
ns
ns
ns
ns
