MAX2612 - 40MHz to 4GHz Linear Broadband Amplifiers

Description

The MAX2612

MAX2616 is a family of high-performance broadband gain blocks designed for use as a PA predriver, low-noise amplifier, or as a cascadable 50I amplifier with up to +19.5dBm output power.

Features

  • Extremely Flat Frequency Response.
  • < 0.5dB, 1GHz to 4GHz.
  • Low Noise Figure: 2.0dB at fRFIN = 2.0GHz.
  • 40MHz to 4000MHz Frequency Range.
  • Industry’s Highest Max PIN Rating.
  • Large OIP3 Ranges.
  • MAX2615/MAX2616: +37dBm.
  • MAX2612: +35.2dBm.
  • MAX2613: +31.2dBm.
  • MAX2614: +30dBm.
  • Output P1dB: +19.5dBm (MAX2615/MAX2616).
  • High Gain: 18.6dB.
  • Shutdown Mode (MAX2612/MAX2613/ MAX2614/MAX26.

📥 Download Datasheet

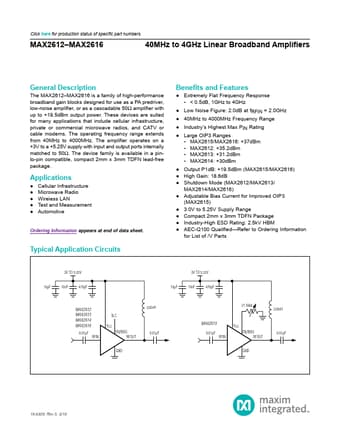

Datasheet preview – MAX2612

Datasheet Details

Part number MAX2612
Manufacturer Maxim Integrated
File Size 623.77 KB
Description 40MHz to 4GHz Linear Broadband Amplifiers
Datasheet download datasheet MAX2612 Datasheet
Additional preview pages of the MAX2612 datasheet.

📁 Similar Datasheet

  • MAX2611 - DC-to-Microwave / Low-Noise Amplifier (Maxim)
  • MAX2601 - 1W RF Power Transistors (Maxim)
  • MAX2602 - 1W RF Power Transistors (Maxim)
  • MAX2605 - Integrated IF VCOs (Maxim)
  • MAX2606 - Integrated IF VCOs (Maxim)
  • MAX2608 - Integrated IF VCOs (Maxim)
  • MAX2620 - 10MHz to 1050MHz Integrated RF Oscillator (Maxim)
  • MAX2622 - Monolithic Voltage-Controlled Oscillators (Maxim Integrated Products)
  • MAX2623 - Monolithic Voltage-Controlled Oscillators (Maxim Integrated Products)
  • MAX2624 - (MAX2622 - MAX2624) Monolithic Voltage-Controlled Oscillators (Maxim Integrated Products)
Other Datasheets by Maxim Integrated
  • MAX261 - Microprocessor Programmable Universal Active Filters
  • MAX2613 - 40MHz to 4GHz Linear Broadband Amplifiers
  • MAX2614 - 40MHz to 4GHz Linear Broadband Amplifiers
  • MAX2615 - 40MHz to 4GHz Linear Broadband Amplifiers
  • MAX2616 - 40MHz to 4GHz Linear Broadband Amplifiers
  • MAX260 - Microprocessor Programmable Universal Active Filters
  • MAX2607 - Integrated IF VCOs
  • MAX2609 - Integrated IF VCOs

Full PDF Text Transcription

Click to expand full text
Click here for production status of specific part numbers. MAX2612–MAX2616 40MHz to 4GHz Linear Broadband Amplifiers General Description The MAX2612–MAX2616 is a family of high-performance broadband gain blocks designed for use as a PA predriver, low-noise amplifier, or as a cascadable 50I amplifier with up to +19.5dBm output power. These devices are suited for many applications that include cellular infrastructure, private or commercial microwave radios, and CATV or cable modems. The operating frequency range extends from 40MHz to 4000MHz. The amplifier operates on a +3V to a +5.25V supply with input and output ports internally matched to 50I. The device family is available in a pinto-pin compatible, compact 2mm x 3mm TDFN lead-free package.
