MAX1322 - Simultaneous-Sampling ADCs

This page provides the datasheet information for the MAX1322, a member of the MAX1318 Simultaneous-Sampling ADCs family.

Description

The MAX1316 MAX1318/MAX1320 MAX1322/MAX1324

MAX1326 14-bit, analog-to-digital converters (ADCs) offer two, four, or eight independent input channels.

Independent track/hold (T/H) circuitry provides simultaneous sampling for each channel.

Features

  • include a 10MHz T/H input bandwidth, internal clock, internal (+2.5V) or external (+2.0V to +3.0V) reference, and powersaving modes. A 16.6MHz, 14-bit, bidirectional, parallel interface provides the conversion results and accepts digital configuration inputs. These devices operate from a +4.75V to +5.25V analog supply and a separate +2.7V to +5.25V digital supply, and consume less than 50mA total supply current. These devices come in a 48-pin TQFP package and operate over the extended -40°C to +.

📥 Download Datasheet

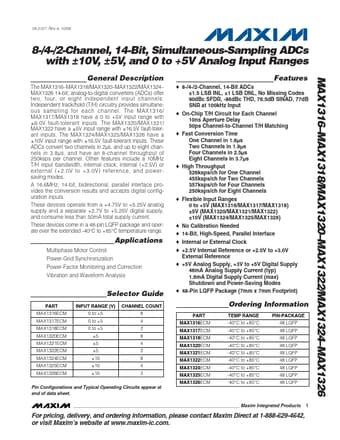

Datasheet preview – MAX1322

📁 Similar Datasheet

  • MAX132 - 18-Bit ADC with Serial Interface (Maxim)
  • MAX13202E - +-30kV ESD Protectors (Maxim Integrated)
  • MAX13204E - +-30kV ESD Protectors (Maxim Integrated)
  • MAX13206E - +-30kV ESD Protectors (Maxim Integrated)
  • MAX13208E - +-30kV ESD Protectors (Maxim Integrated)
  • MAX13234E - 3Mbps RS-232 Transceivers (Maxim Integrated)
  • MAX13235E - 3Mbps RS-232 Transceivers (Maxim Integrated)
  • MAX13236E - 3Mbps RS-232 Transceivers (Maxim Integrated)
  • MAX13237E - 3Mbps RS-232 Transceivers (Maxim Integrated)
  • MAX13253 - Transformer Driver (Maxim Integrated)
Other Datasheets by Maxim Integrated Products

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com 19-3157; Rev 2; 8/04 8-/4-/2-Channel, 14-Bit, Simultaneous-Sampling ADCs with ±10V, ±5V, and 0 to +5V Analog Input Ranges General Description The MAX1316–MAX1318/MAX1320–MAX1322/MAX1324– MAX1326 14-bit, analog-to-digital converters (ADCs) offer two, four, or eight independent input channels. Independent track/hold (T/H) circuitry provides simultaneous sampling for each channel. The MAX1316/ MAX1317/MAX1318 have a 0 to +5V input range with ±6.0V fault-tolerant inputs. The MAX1320/MAX1321/ MAX1322 have a ±5V input range with ±16.5V fault-tolerant inputs. The MAX1324/MAX1325/MAX1326 have a ±10V input range with ±16.5V fault-tolerant inputs. These ADCs convert two channels in 2µs, and up to eight channels in 3.8µs, and have an 8-channel throughput of 250ksps per channel.
