MAX17044 - Low-Cost 1S/2S Fuel Gauges

This page provides the datasheet information for the MAX17044, a member of the MAX17043 Low-Cost 1S/2S Fuel Gauges family.

Description

The MAX17043/MAX17044 are ultra-compact, low-cost, host-side fuel-gauge systems for lithium-ion (Li+) batteries in handheld and portable equipment.

The MAX17043 is configured to operate with a single lithium cell and the MAX17044 is configured for a dual-cell 2S pack.

Features

  • Host-Side or Battery-Side Fuel Gauging 1 Cell (MAX17043) 2 Cell (MAX17044).
  • Precision Voltage Measurement ±12.5mV Accuracy to 5.00V (MAX17043) ±30mV Accuracy to 10.00V (MAX17044).
  • Accurate Relative Capacity (RSOC) Calculated from ModelGauge Algorithm.
  • No Offset Accumulation on Measurement No Full-to-Empty Battery Relearning Necessary No Sense Resistor Required External Alarm/Interrupt for Low-Battery Warning 2-Wire Inte.

📥 Download Datasheet

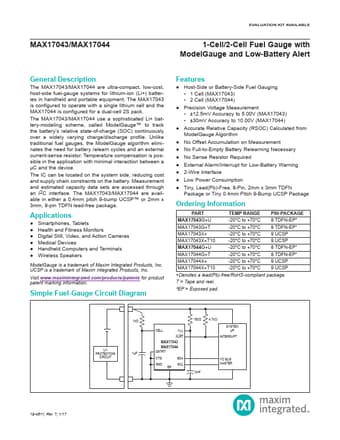

Datasheet preview – MAX17044
