ERL28 Switching Transformer

ERL28 Description

ERL28 5 Outputs: 3.3 / 5 / 12 / 18 / 30V SwMitScRhiHng5TDra1n8s-fMorSmRerH5D28 Series Meisongbei .

ERL28 Features

* Primary / Secondary Insulation ≥ 4000V
* Primary / Auxiliary Insulation ≥ 1500V

ERL28 Applications

* AC-DC converters
* DC-DC converters
* Switch Power supplies
* SMPS: Flyback

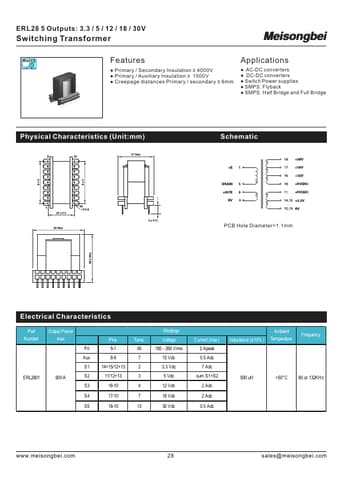

* SMPS: Half Bridge and Full Bridge Physical Characteristics (Unit:mm) Schematic PCB Hole Diameter=1.1mm Electrical Characteristics Part N umber Output Power max ERL2801 60VA Pri Aux S1 S2 S3 S
