SY88309BL Datasheet PDF (3.2Gbps PECL Limiting Post Amplifier) | Download Micrel Semiconductor SY88309BL

SY88309BL - 3.2Gbps PECL Limiting Post Amplifier

Description

The SY88309BL low-power limiting post amplifiers are designed for use in fiber-optic receivers.

These devices connect to typical transimpedance amplifiers (TIAs).

The linear signal output from TIAs can contain significant amounts of noise and may vary in amplitude over time.

Features

Signal Detect circuit optimized to detect a larger and wider input range (20mVPP-140mVPP).
Chatter-free Open-Collector TTL Signal-Detect (SD).
Single 3.3V power supply.
155Mbps to 3.2Gbps operation.
Low-noise PECL data outputs.
Programmable SD level set (SDLVL).
Available in a tiny 10-pin EPAD-MSOP and 16-pin QFN package.

Datasheet Details

Part number	SY88309BL
Manufacturer	Micrel Semiconductor
File Size	330.94 KB
Description	3.2Gbps PECL Limiting Post Amplifier
Datasheet	SY88309BL Datasheet

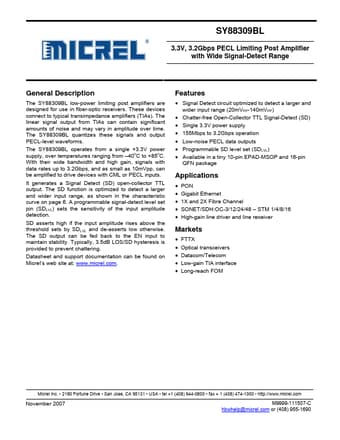

Additional preview pages of the SY88309BL datasheet.

📁 Similar Datasheet

SY88303BL - 3.2 Gbps CML Limiting Post Amplifier (Microchip)

SY88343BL - 3.2 Gbps CML Limiting Post Amplifier (Microchip)

SY8801 - Bluetooth headset smart charging case solution (TPS)

SY8802 - Bluetooth headset smart charging case solution (TPS)

SY8803 - Bluetooth headset smart charging case solution (TPS)

SY8805A - 5A Synchronous Step Down Regulator (Silergy)

SY8810 - Bluetooth headset smart charging case solution (TPS)

SY8812 - Bluetooth headset charging case solution (TPS)

SY88149HL - 3.3V 1.25Gbps Burst-Mode Limiting Amplifier (MICREL)

SY8815 - Bluetooth headset charging case solution (TPS)

Full PDF Text Transcription

Click to expand full text

SY88309BL 3.3V, 3.2Gbps PECL Limiting Post Amplifier with Wide Signal-Detect Range General Description The SY88309BL low-power limiting post amplifiers are designed for use in fiber-optic receivers. These devices connect to typical transimpedance amplifiers (TIAs). The linear signal output from TIAs can contain significant amounts of noise and may vary in amplitude over time. The SY88309BL quantizes these signals and output PECL-level waveforms. The SY88309BL operates from a single +3.3V power supply, over temperatures ranging from –40oC to +85oC. With their wide bandwidth and high gain, signals with data rates up to 3.2Gbps, and as small as 10mVpp, can be amplified to drive devices with CML or PECL inputs. It generates a Signal Detect (SD) open-collector TTL output.
